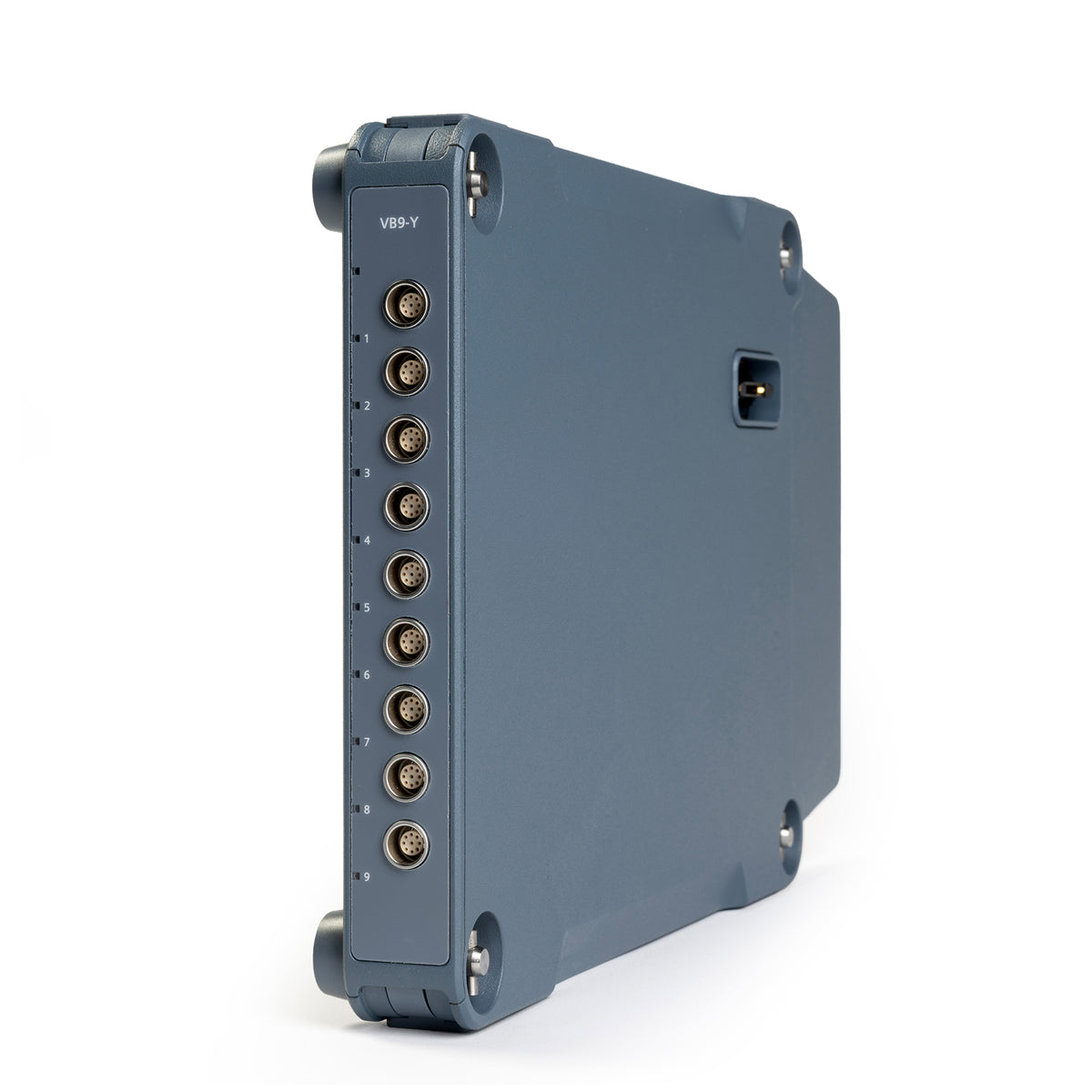

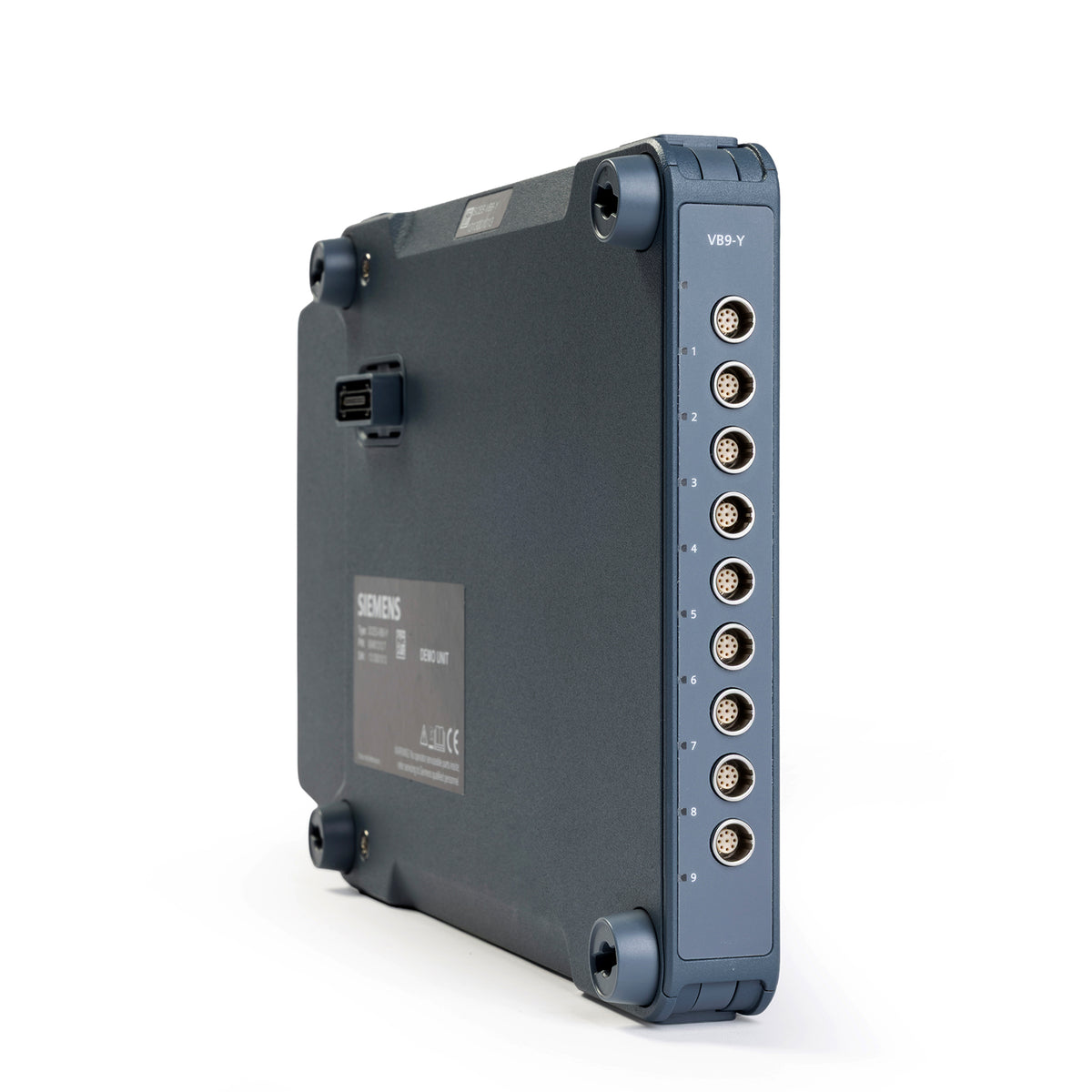

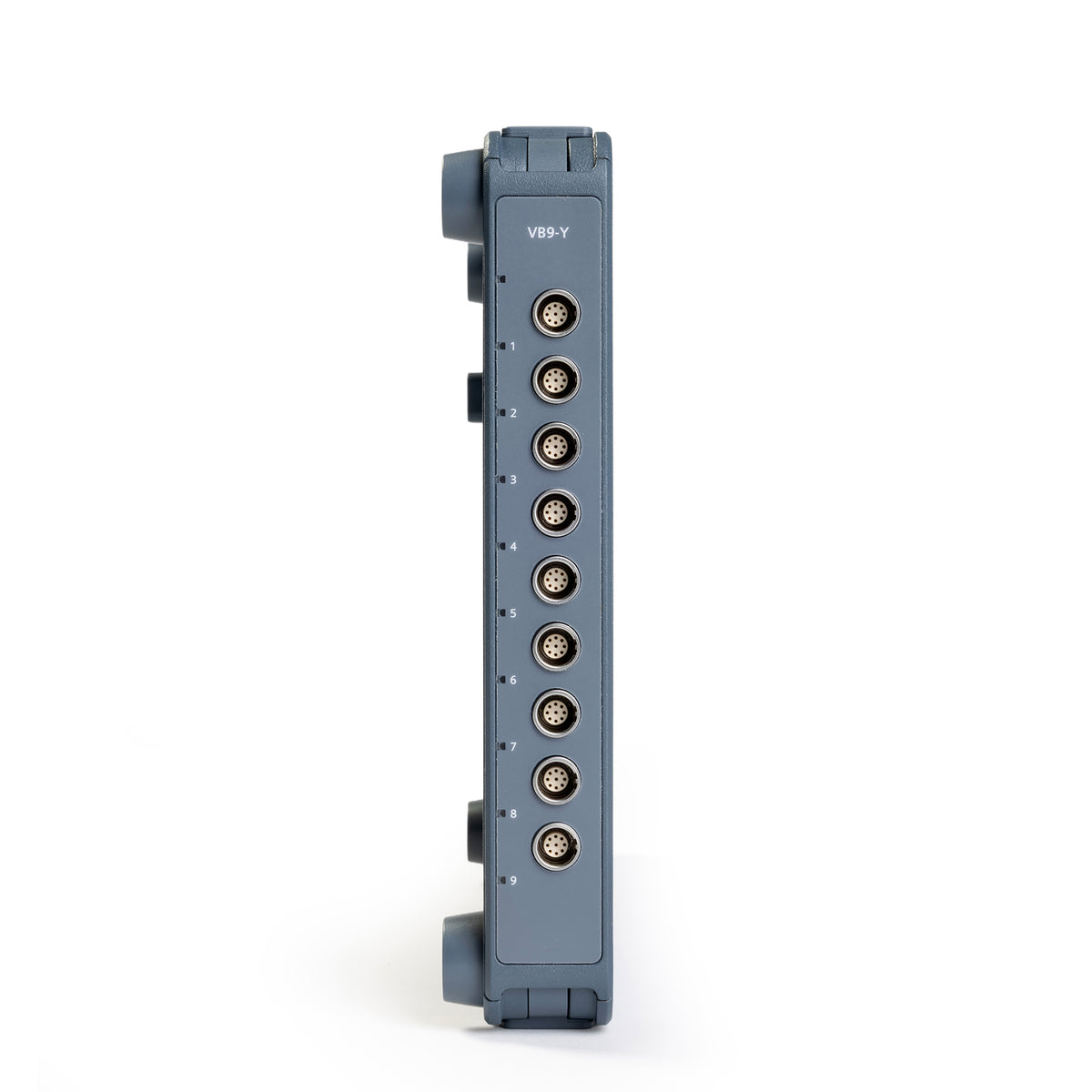

The SCES-VB9-Y is a 9-channel voltage/ICP®/bridge conditioning unit for single-ended and differential voltage signals, piezoelectric ICP® sensors, and bridge and sensor applications. It combines voltage acquisition, ICP® power supply, DC power supply, and bridge power supply with sense lines in a compact 1-slot design.

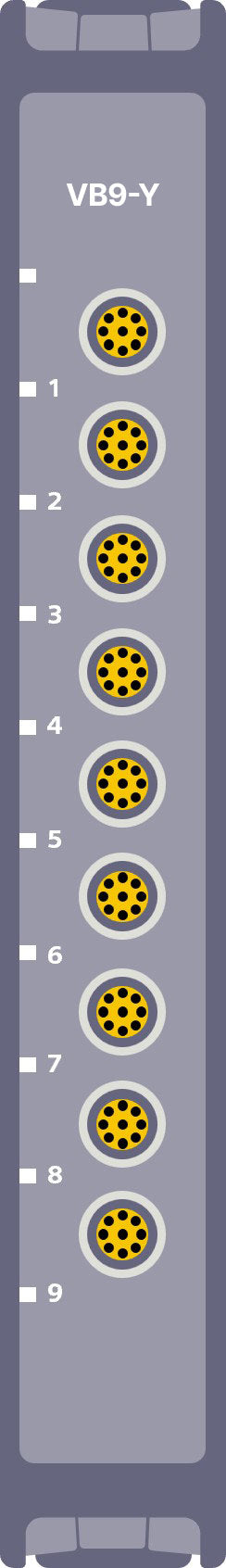

The unit provides 9 input channels via 9-pin Yamaichi connectors and is therefore designed for connection configurations in the Simcenter SCADAS RS environment.

Supported devices include, among others, piezoelectric ICP® sensors, single-ended voltage inputs up to ±60 V, differential voltage inputs up to ±10 V, sensors with or without an external power supply, current loops via shunts, and various types of bridge and displacement sensors.

The SCES-VB9-Y is particularly well-suited for measurement applications involving strain gauges, force, pressure, displacement, temperature, and general sensor technology, where conventional voltage/ICP® measurement and bridge signal conditioning need to be combined in a single unit.
