Input module

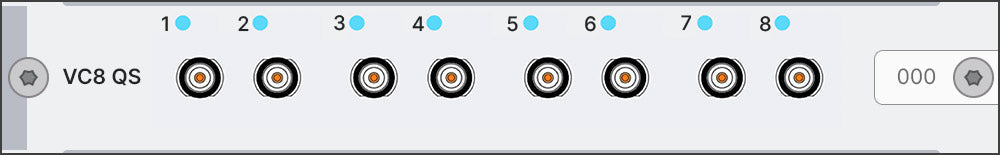

Simcenter SCADAS Mobile and Lab Eight-channel input module for voltage; ICP® and charge - Mobile/Recorder - quasi-static

Simcenter SCADAS Mobile and Lab Eight-channel input module for voltage; ICP® and charge - Mobile/Recorder - quasi-static

SCM-VC8-QS

The VC8E is an eight-channel module with V/ICP/charge inputs and TEDS support. It features a sampling rate of 204.8 kHz and a dynamic range of over 150 dB.

  • Eight input channels via Microdot connectors
  • Channel-selectable voltage, as well as ICP and charge modes

Frame Color
€18,130.00
€18,130.00
Sale Sold out
You need a verified account to view prices and purchase products.
  • Available
Show full details

The VC8 supports signal conditioning and signal processing for eight channels of voltage sources and ICP or piezoelectric sensors in a single Simcenter SCADAS Mobile or Simcenter SCADAS Lab slot. The VC8 offers a unique combination of extremely low power consumption, 204.8 kHz 24-bit analog-to-digital conversion, and a noise-free dynamic range of 150 dB.

Quasi-static The VC8-QS supports signal conditioning and signal processing for eight channels for voltage sources and ICP or piezoelectric sensors in a single Simcenter SCADAS Mobile or Simcenter SCADAS Lab slot and is specifically designed for quasi-static measurements.

With extended charge input ranges and a low time constant (τ), the VC8-QS is an optimized input module for charge accelerometers, force/torque cells, and charge pressure sensors (engine combustion).

Extended range: Extended load input ranges to support specialized load accelerometers.
