Data Collection System

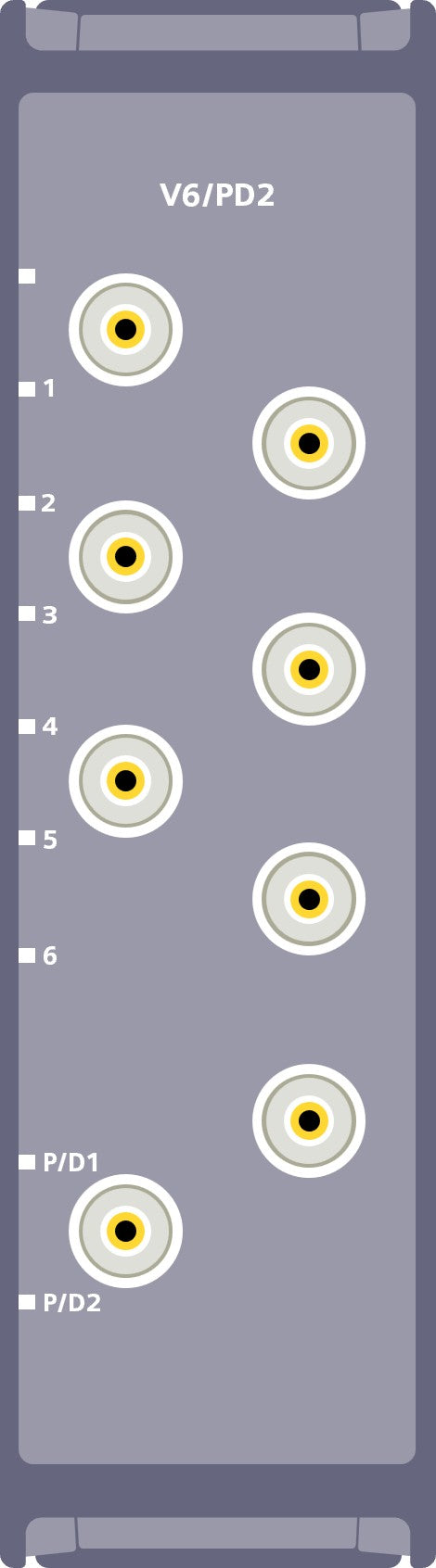

Simcenter SCADAS ES 6-Channel V/ICP 2-Channel PDAC Unit B

Simcenter SCADAS ES 6-Channel V/ICP 2-Channel PDAC Unit B

SCES-V6-PD2-B

SCADAS ES dual-slot unit with 6 voltage/ICP inputs plus 2 DAC outputs and pulse/tacho inputs (BNC).

  • 6 unbalanced voltage/ICP input channels
  • 2 semi-differential DAC outputs
  • Pulse/speed sensor or 1-channel incremental encoder inputs
  • BNC Connectors in a Dual Slot

Frame Color
€11,280.00
€11,280.00
Sale Sold out
Your account is currently being reviewed. This may take up to 3 business days.
Show full details

The SCES-V6-PD2-B is a combined, multifunction conditioning unit for 6 single-ended voltage/ICP® input channels and 2 pulse/tacho/DAC channels. It combines traditional voltage signal acquisition with ICP® sensor power supply, digital pulse/tacho acquisition, and analog signal output in a single compact unit.

The unit provides a total of 8 BNC connectors:

  • 6 × single-ended voltage/ICP® inputs
  • 2 × combined pulse/tacho/DAC channels

The two pulse/DAC channels can be used either as differential analog pulse/tacho inputs or as semi-differential DAC outputs. Supported devices include piezoelectric ICP® sensors, voltage inputs up to ±60 V, analog tacho signals, digital pulse/tacho signals, incremental encoders, and quadrature encoders.

Thanks to its combination of voltage/ICP® inputs, pulse/tacho acquisition, and DAC output, the SCES-V6-PD2-B is particularly well-suited for test bench, rotational, NVH, structural, and functional measurements where analog measurement channels and speed/position signals need to be consolidated into a single unit.
