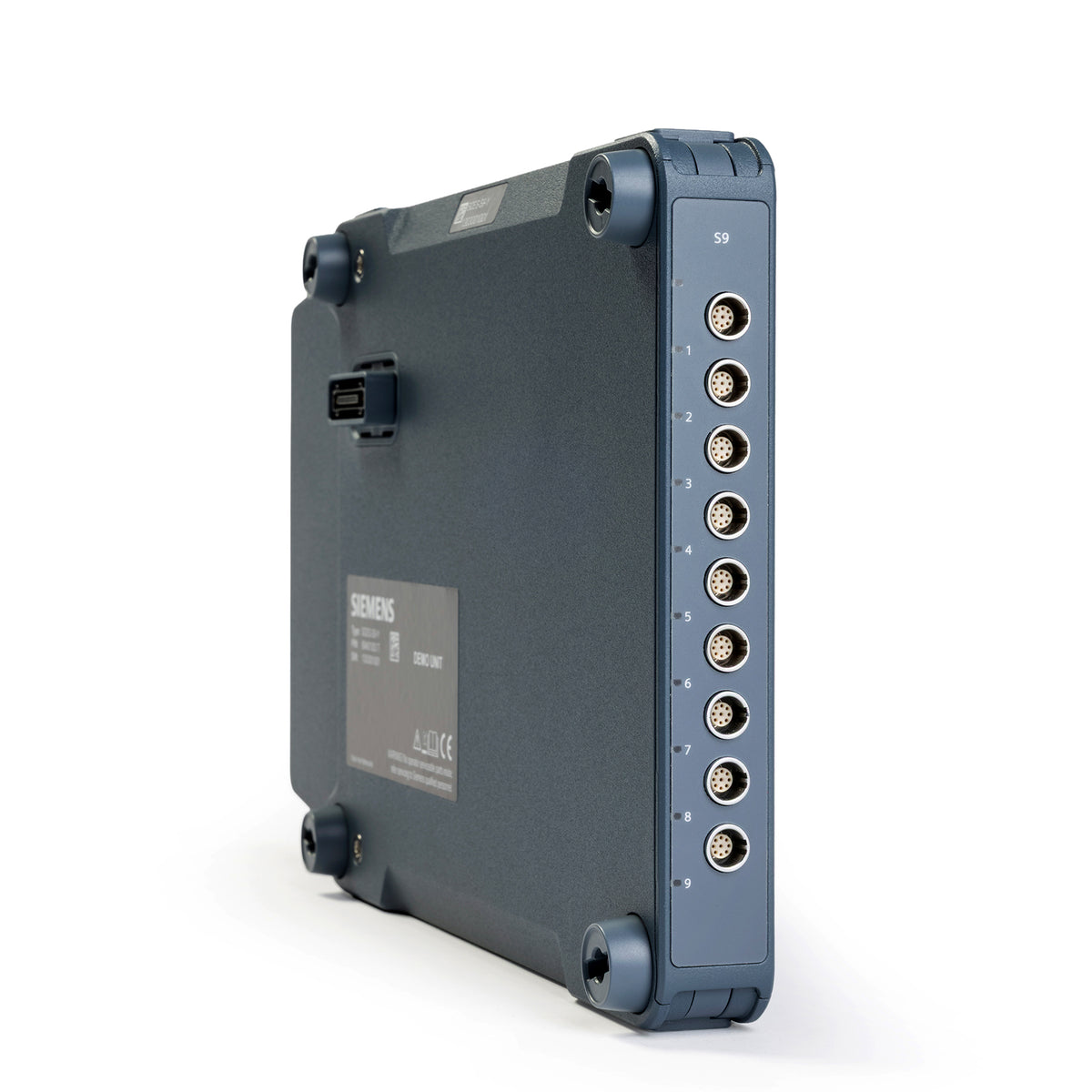

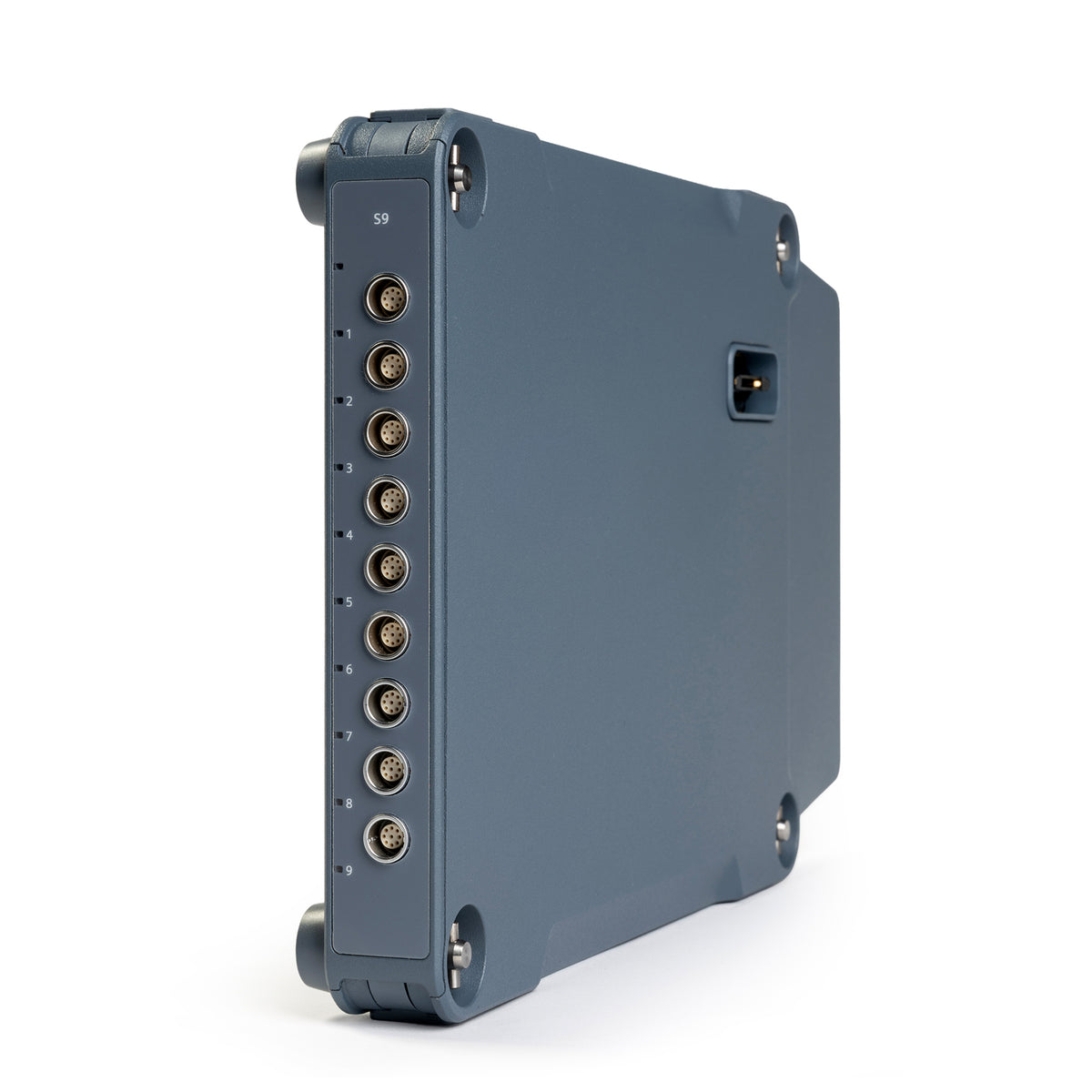

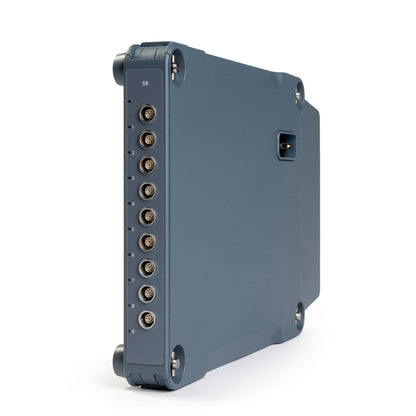

The SCES-S9-Y is a 9-channel sensor conditioning unit for differential and single-ended voltage signals as well as ICP® sensors. It is designed for precise measurements using piezoelectric sensors, voltage inputs, externally powered sensors, and current loops.

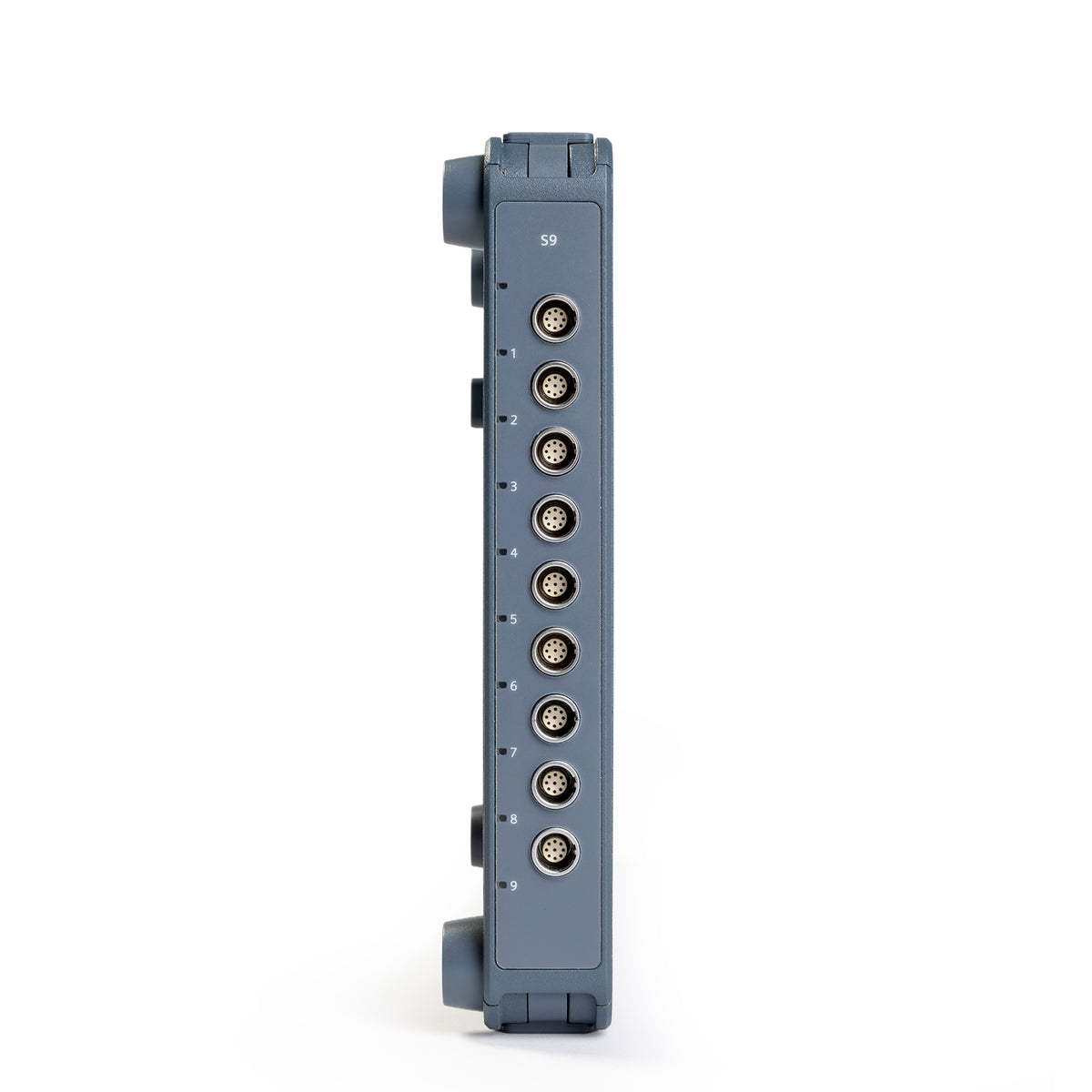

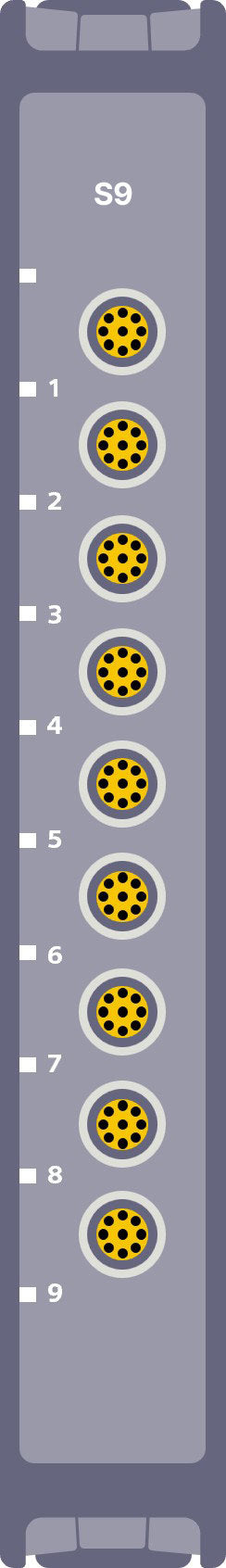

The unit provides 9 analog sensor channels via 9-pin Yamaichi connectors. Each channel supports both differential and single-ended input signals. ICP® power supply and DC sensor power supply are also available.

The SCES-S9-Y is particularly well-suited for applications involving mixed sensor signals, such as acceleration, vibration, structural, test bench, and general sensor signal measurements. Its combination of high sampling rate, flexible filter options, high input impedance, and sensor power supply makes it a versatile unit for demanding measurement tasks.
