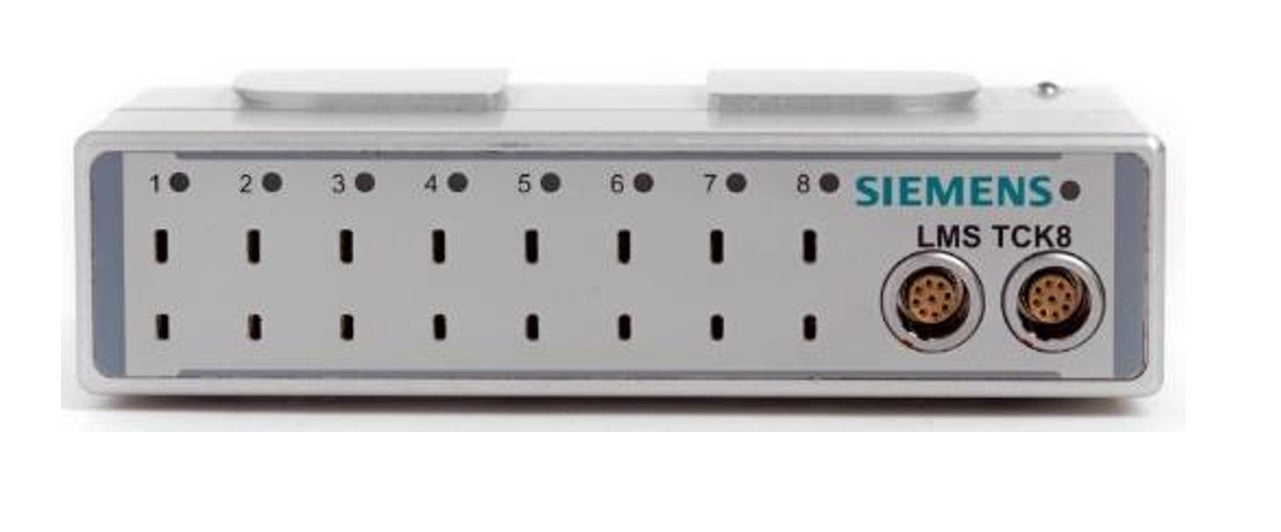

Simcenter SCADAS IP67-certified 8-channel temperature primary device

Simcenter SCADAS IP67-certified 8-channel temperature primary device

SC-TCK8A

The TCK8A is a temperature CAN device with eight galvanically isolated channels for acquiring signals from K-type thermocouples.
It works exclusively with the SCM-CN4 module and is equipped with a signal/power cable and a CAN termination connector.
A channel expansion to up to 16 channels is supported by the secondary device TCK8B.

  • Eight Type K thermocouple inputs (NiCr/NiAl).
  • Designed for use in the engine compartment

Frame Color
€3,380.00
€3,380.00
Sale Sold out
You need a verified account to view prices and purchase products.
  • Available
Show full details

The SC-TCK8 expands the capabilities of Simcenter SCADAS Mobile by enabling the acquisition of a large number of K-type thermocouple signals. When used in combination with the CN4-II module, up to four SC-TCK8 devices can be connected to Simcenter SCADAS Mobile to support up to 32 thermocouple channels per CN4-II module.
The SC-TCK8 is supplied as a primary device (A) and a secondary device (B), enabling daisy-chaining for expansion in increments of eight channels. The primary devices are connected to the CN4-II module via a cable to ensure power supply and capture all transmitted messages. The message stream is resampled and synchronized with SCADAS Mobile’s internal acquisition rate.
