  • Simcenter SCADAS Mobile Dual Camera Interface Module
  • Simcenter SCADAS Mobile Dual Camera Interface Module

Recorder Input Module

Simcenter SCADAS Mobile Dual Camera Interface Module

Simcenter SCADAS Mobile Dual Camera Interface Module

SCM-CIM2

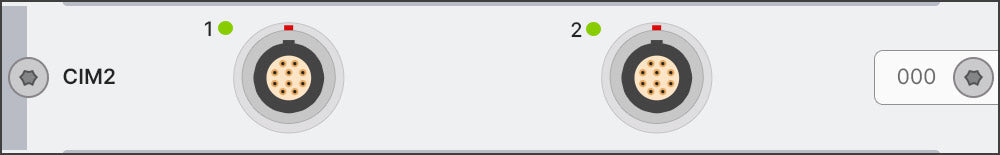

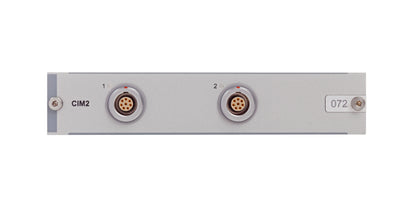

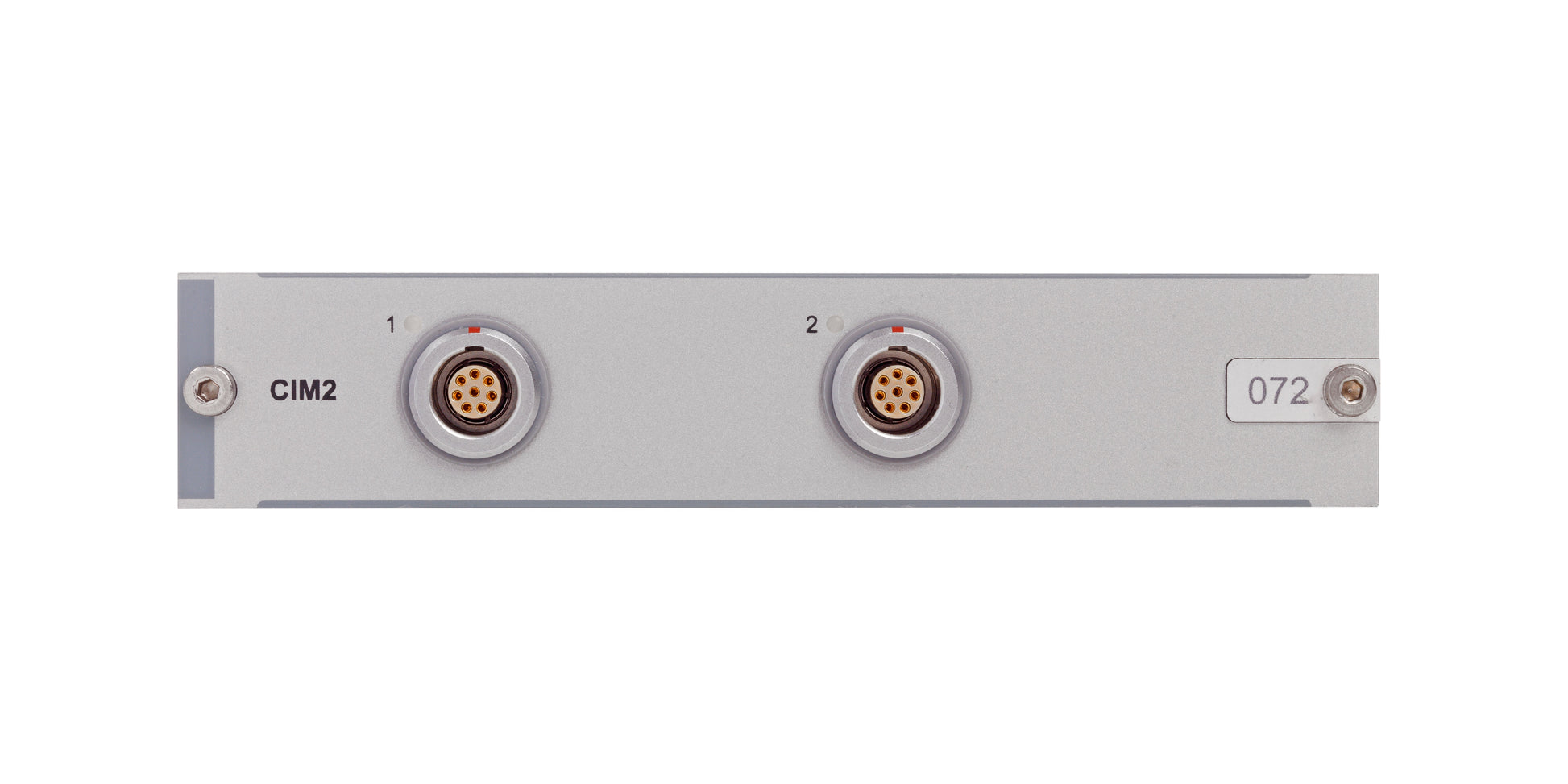

The Dual Camera Interface Module (CIM2) enables the capture of synchronized video signals in the SCADAS recorder via a LAN interface. The module uses 100 Mbps LAN interfaces and provides power to IP cameras.

  • Walkthrough
  • High-quality video recording
  • Quick and easy measurement configuration and data validation
  • Compact and rugged cameras

€7,815.00
€7,815.00
Sale Sold out
You need a verified account to view prices and purchase products.
  • Available
Show full details

The video streams are automatically synchronized using timestamps. The CIM2 input module features two separate Fast Ethernet interfaces for streaming H.264-compressed video from the two included IP cameras to the integrated CompactFlash card of the Simcenter SCADAS Recorder system.
The cameras are powered by the CIM2 module via the Ethernet interface using PoE (Power over Ethernet) technology—no external power supply is required.

  • Two STP07 - 2-meter shielded twisted-pair cables
  • Two Sony SNC-CH110 cameras
  • Two suction cups
