Input module

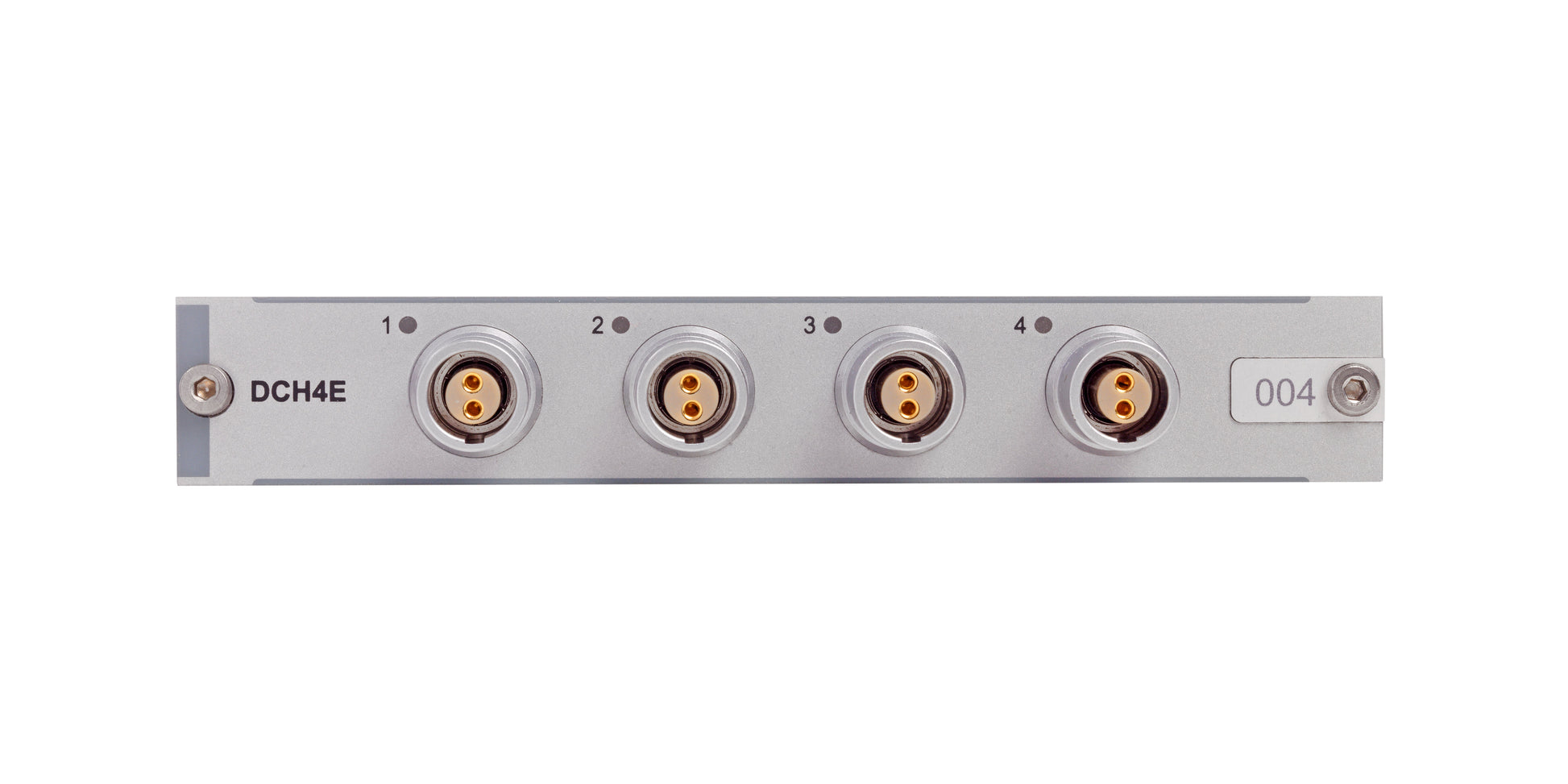

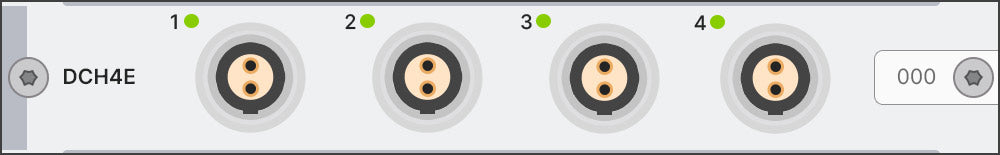

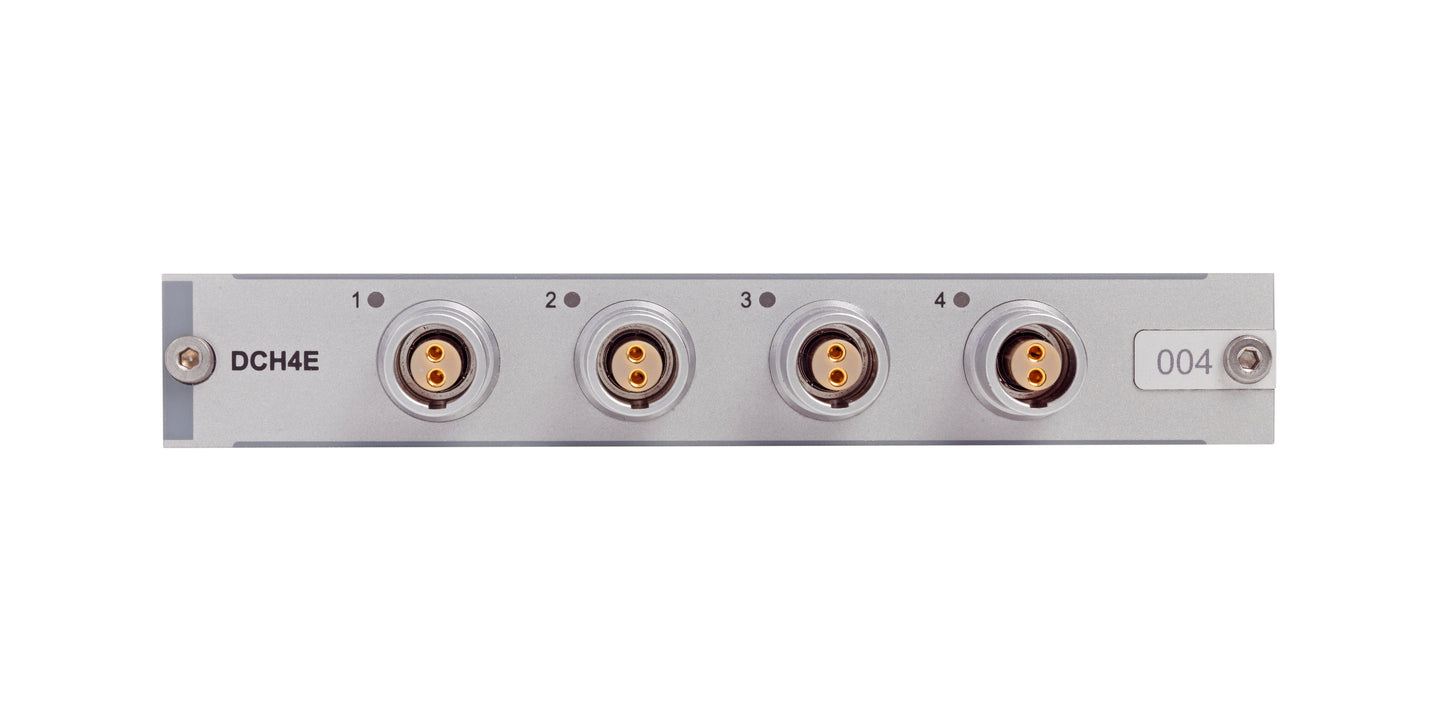

Simcenter SCADAS Mobile and Lab 4-channel differential charge input module - Mobile/Recorder

Simcenter SCADAS Mobile and Lab 4-channel differential charge input module - Mobile/Recorder

SCM-DCH4-E

The DCH4 is a four-channel differential charge amplifier with an input range of 10 pC to 10,000 pC. It features a calibration test circuit that can be used to test the sensor and the sensor cable.

  • Four input channels via LEMO connectors
  • Extremely low-noise differential charge input

Frame Color
€9,680.00
€9,680.00
Sale Sold out
You need a verified account to view prices and purchase products.
  • Available
Show full details

The DCH4 supports four-channel signal conditioning and signal processing for measuring signals from differential and single-ended piezoelectric sensors in a single Simcenter SCADAS Mobile or Simcenter SCADAS Lab slot. The DCH4 offers a unique combination of extremely low power consumption, 204.8 kHz 24-bit analog-to-digital conversion, and a noise-free dynamic range of 138 dB.
