Input module

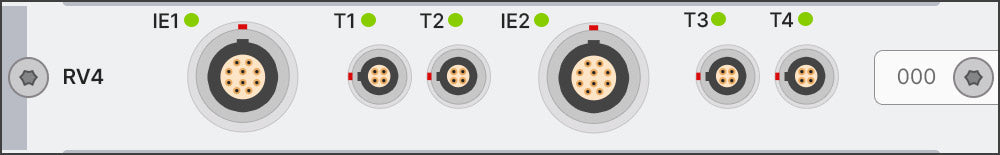

Simcenter SCADAS Mobile and Lab 4-channel torsional vibration module - Mobile/Recorder

Simcenter SCADAS Mobile and Lab 4-channel torsional vibration module - Mobile/Recorder

SCM-RV4

The RV4 module is a signal conditioner for slow and fast tachometer signals from analog, digital, and/or incremental encoder sources. It precisely conditions, acquires, and processes tachometer signals to generate time, angle, or speed values.

  • Multifunctional module that supports any combination of analog and digital speedometers and incremental encoders
  • Simultaneous and synchronous acquisition of rotational signals and standard analog signals (accelerometers, microphones, etc.).
  • Processing functions for synchronous job tracking and angle range applications are supported.

Frame Color
€10,740.00
€10,740.00
Sale Sold out
You need a verified account to view prices and purchase products.
  • Available
Show full details

When installed in a single Simcenter SCADAS Mobile or SCADAS Lab slot, the Rotational Vibration Module (RV4) serves as a fast and precise signal conditioner for low- and high-speed tachometer signals from analog sources, digital sources, and/or incremental encoders.

The RV4 precisely conditions, acquires, and processes tachometer signals to generate time, angle, or speed data—which can be selected per channel and are fully synchronized with the data acquired by other dynamic channels.

  • Four 50-cm LEMO-to-BNC cables
  • Two 10-pin LEMO 1B connectors
