Input module

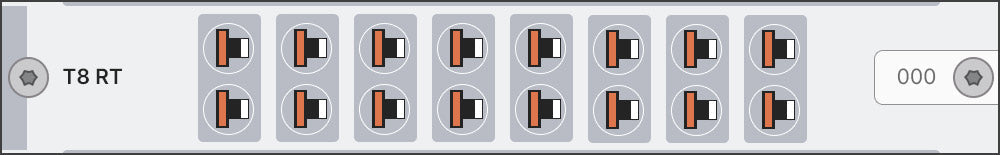

Simcenter SCADAS Mobile and Lab 8-channel thermocouple input module with real-time digital output - Mobile/Recorder

Simcenter SCADAS Mobile and Lab 8-channel thermocouple input module with real-time digital output - Mobile/Recorder

SCM-T8-RT

The T8-RT module extends the signal conditioning capabilities of Simcenter SCADAS Mobile and Simcenter SCADAS Lab to include slowly or rapidly changing temperature signals from thermocouple sensors. It supports all common thermocouple types—B, E, J, K, N, R, S, and T—which can be selected on a per-channel basis.

  • Support for thermocouple types B, E, J, K, N, R, S, and T
  • Channel-selectable thermocouple type

Frame Color
€7,890.00
€7,890.00
Sale Sold out
You need a verified account to view prices and purchase products.
  • Available
Show full details

The T8-RT module extends the signal processing capabilities of Simcenter SCA DAS Mobile and Simcenter SCADAS Lab to include slowly or rapidly changing temperature signals from thermocouple sensors. All common thermocouple types—B, E, J, K, N, R, S, and T—are supported, and each type can be selected on a per-channel basis.

The high-speed ADC enables the measurement of rapidly changing temperature signals at a sampling rate of up to 3.2 kHz. Precise cold-junction compensation and integrated linearization ensure high accuracy across the entire measurement range of the thermocouple.
