  • Simcenter SCADAS Mobile and Lab Eight-Channel Voltage/ICP® Differential Input and Output Module - Mobile/Recorder - with monitor Output
  • Simcenter SCADAS Mobile and Lab Eight-Channel Voltage/ICP® Differential Input and Output Module - Mobile/Recorder - with monitor Output

Input/Output Module

Simcenter SCADAS Mobile and Lab Eight-Channel Voltage/ICP® Differential Input and Output Module - Mobile/Recorder - with monitor Output

Simcenter SCADAS Mobile and Lab Eight-Channel Voltage/ICP® Differential Input and Output Module - Mobile/Recorder - with monitor Output

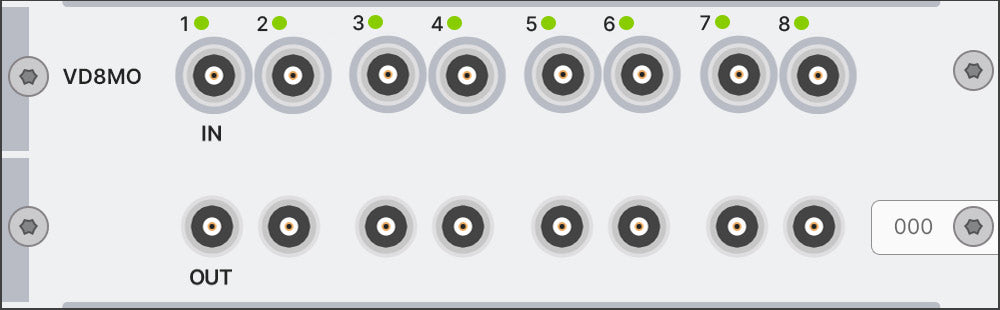

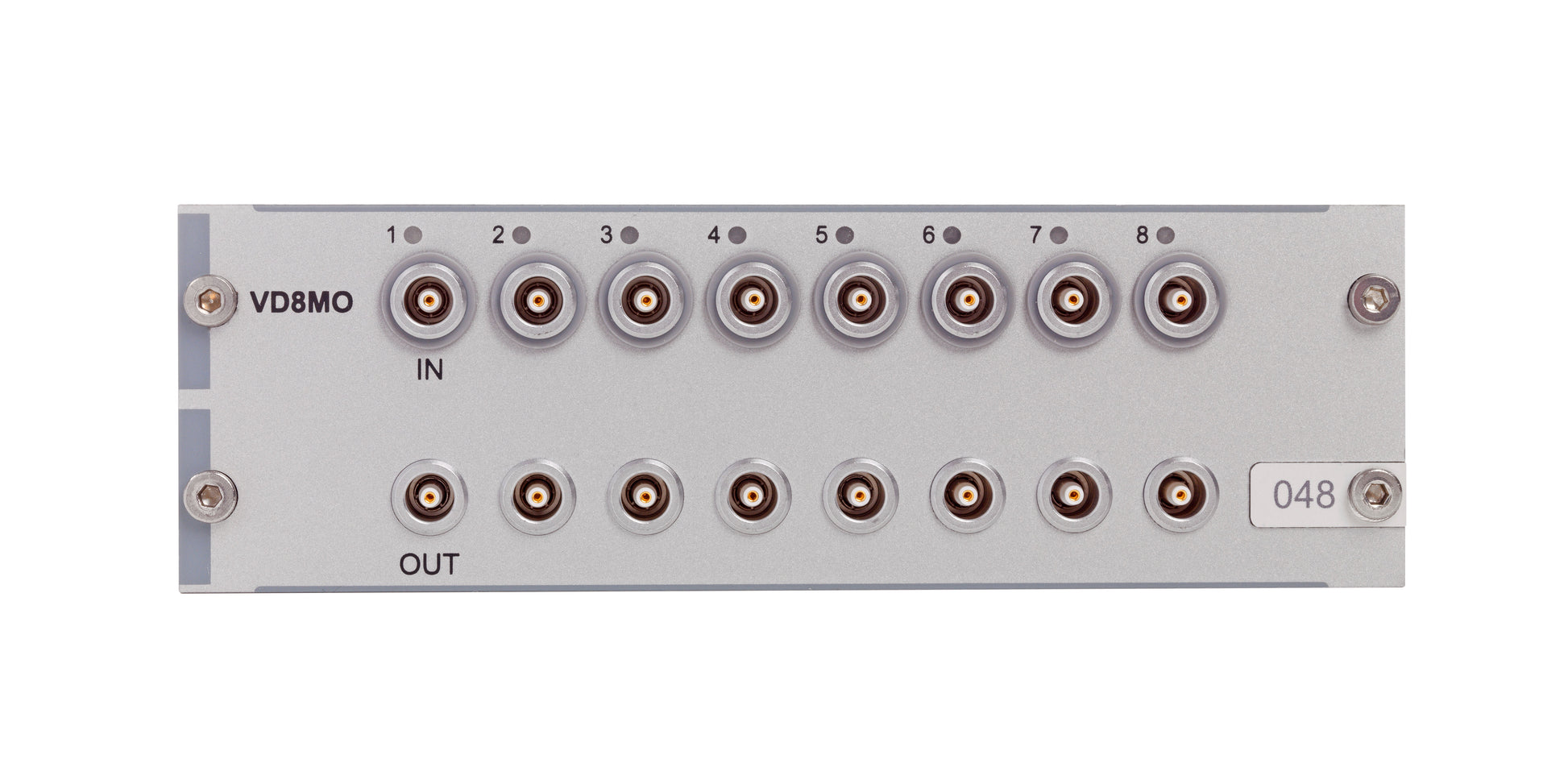

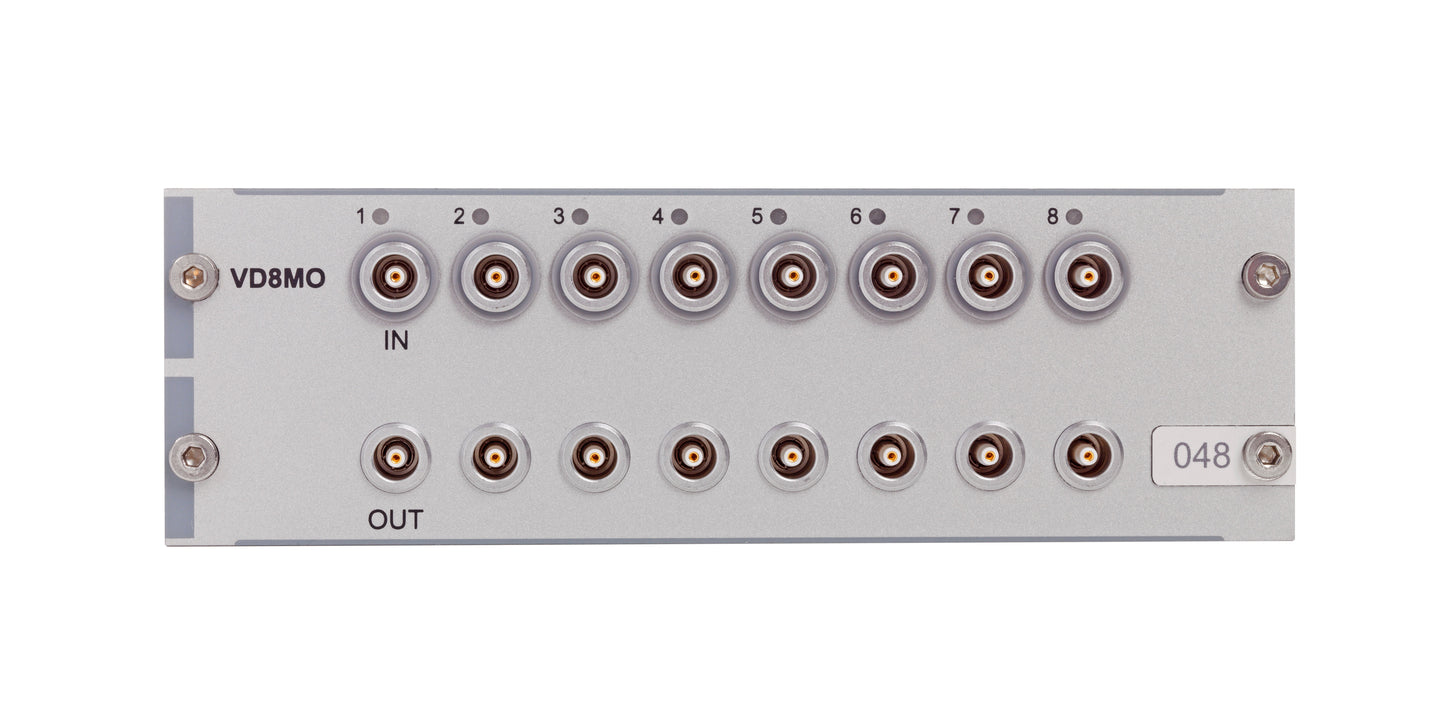

SCM-VD8MO-E

The VD8 is an eight-channel module with V/ICP inputs (with TEDS support) and a sampling rate of up to 204.8 kHz. It supports both differential and single-ended signal conditioning modes.

  • Eight input channels via CAMAC-
  • Sub-D or BNC connectors (occupies two slots).
  • Eight fail-safe single-ended monitor outputs (VD8MO only)
  • Isolated ICP with differential input to prevent ground loops

Frame Color
€18,290.00
€18,290.00
Sale Sold out
You need a verified account to view prices and purchase products.
  • Available
Show full details

The VD8 is a Simcenter SCADAS module with differential and single-ended inputs that supports complete voltage and ICP signal conditioning as well as signal processing for eight channels. The VD8 offers a unique combination of extremely low power consumption, high-performance 204.8 kHz 24-bit analog-to-digital conversion, and a noise-free dynamic range of 150 dB.
