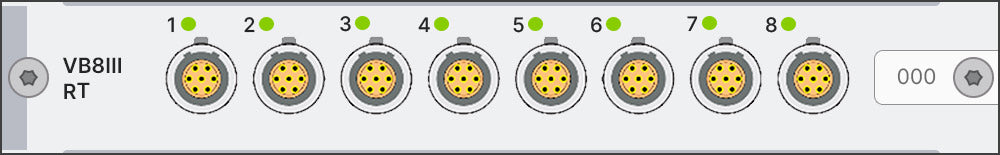

Simcenter SCADAS Mobile and Lab Eight-channel universal input module - Mobile/Recorder

SKU:SCM-VB8III-RT

The VB8III is an eight-channel input module designed for NVH applications. It supports the conditioning of voltage, ICP, DC bridge, AC bridge, AC LVDT, active sensors, transducers, and potentiometers via EtherCAT input.

Multiple signal converters per channel allow each input channel to be configured to support a wide variety of sensors.
Continuous ICP and jumper cable monitoring and detection for open circuits and short circuits.

€20,680.00

Sale Sold out

You need a verified account to view prices and purchase products.

Available

Show full details

In a single Simcenter SCADAS Mobile or Lab slot, the eight-channel VB8III-RT supports multiple signal conditioning functions, high-bandwidth A/D conversion, and signal processing, offering a unique combination of strain, vibration, displacement, pressure measurements, and more in a single module. The VB8III-RT is the most versatile solution for multiphysics measurement campaigns.

Eight (8) LEMO-to-pigtail cables
Eight (8) LEMO-to-BNC cables

Signal conditioning
Multiple signal conditioners per channel allow each input channel to be configured to support a wide variety of sensors.
DC-coupled voltage input
ICP® input for accelerometers, load cells, and strain gauges
DC bridge to support Wheatstone bridge types, e.g., strain gauges in full, half, and quarter-bridge configurations, as well as DC accelerometers/pressure transducers.
Carrier frequency (AC bridge) supports strain gauges in full, half, and quarter-bridge configurations, as well as inductive half-bridges.
Active sensors such as MEMS or variable capacitance
LVDT sensors for measuring displacement or rotation
Potentiometers for measuring linear displacement
4–20 mA transducers for measuring pressure or temperature (SCX-CAS10 cable required).
Class 1 TEDS (ICP sensors) and Class 2 TEDS (DC sensors) are supported in accordance with the IEEE 1451.4 standard.
Analog-to-digital conversion
The VB8III-RT uses power-efficient, high-performance 24-bit sigma-delta analog-to-digital converters with a maximum bandwidth of 88 kHz and selectable Bessel or Butterworth low-pass filters at 5 kHz. A four-pole analog anti-aliasing filter is connected upstream of each ADC. A selectable range of 150 dB/oct. digital decimation filters reduces the bandwidth in steps of 2 and 2.5 and ensures 100 dB of aliasing rejection across all measurement bandwidths.
Signal processing
The VB8III-RT is equipped with an energy-efficient, high-performance DSP and 32-bit memory for decimation, online calibration, and online broadband RMS calculation—regardless of the number of channels.
Anomaly Detection and Reporting
Overload and underload conditions are detected in the digital data, which is sampled at the ADC's sampling rate prior to decimation. The input signals are inherently band-limited (strain gauges or DC accelerometers). The power consumption of the channels
