Input module

Simcenter SCADAS Mobile and Lab Quad CAN Bus Interface Module - Mobile/Recorder

Simcenter SCADAS Mobile and Lab Quad CAN Bus Interface Module - Mobile/Recorder

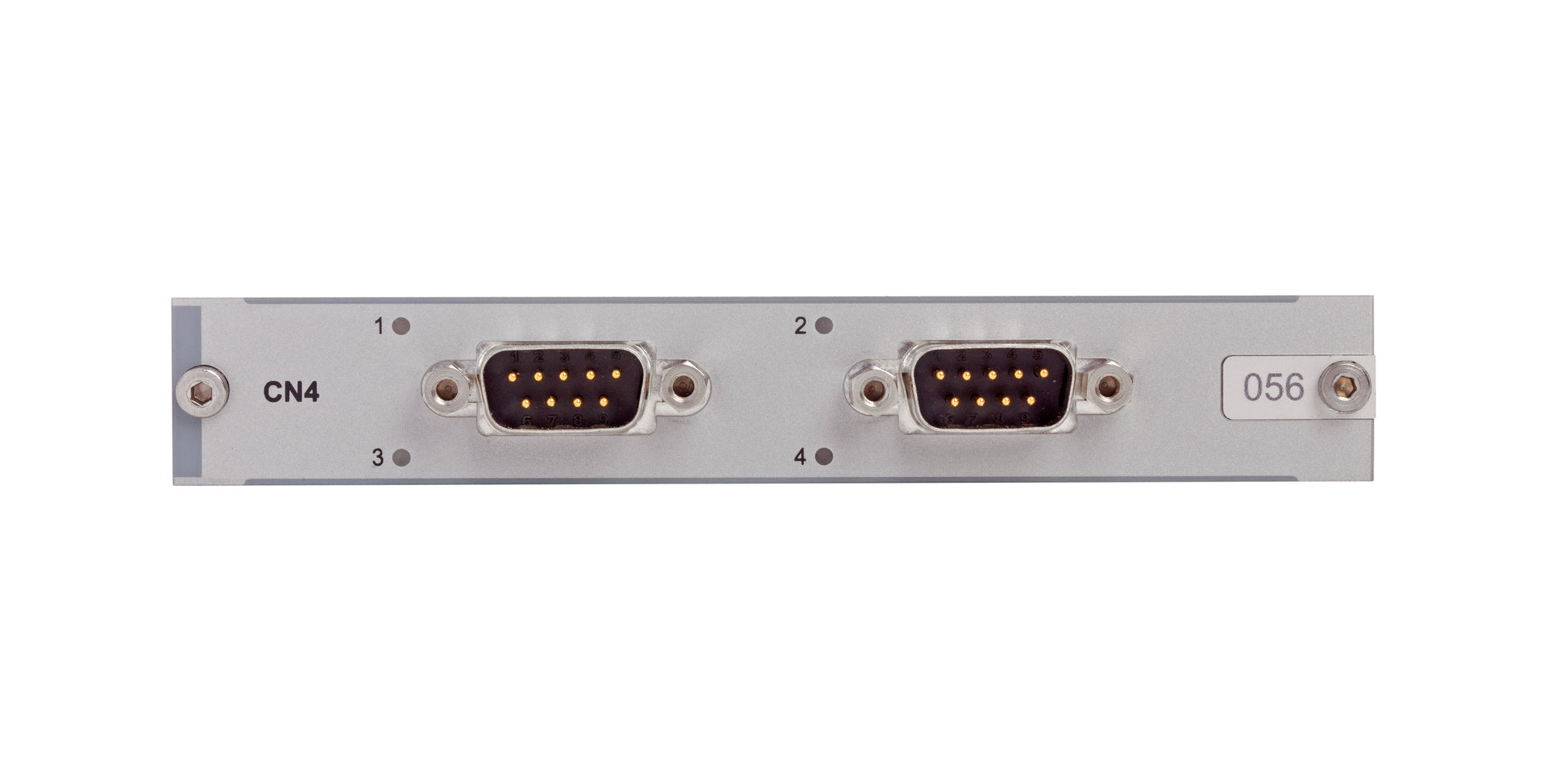

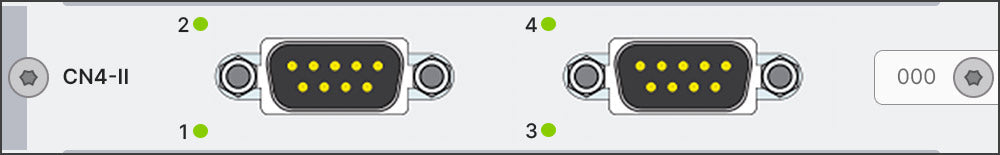

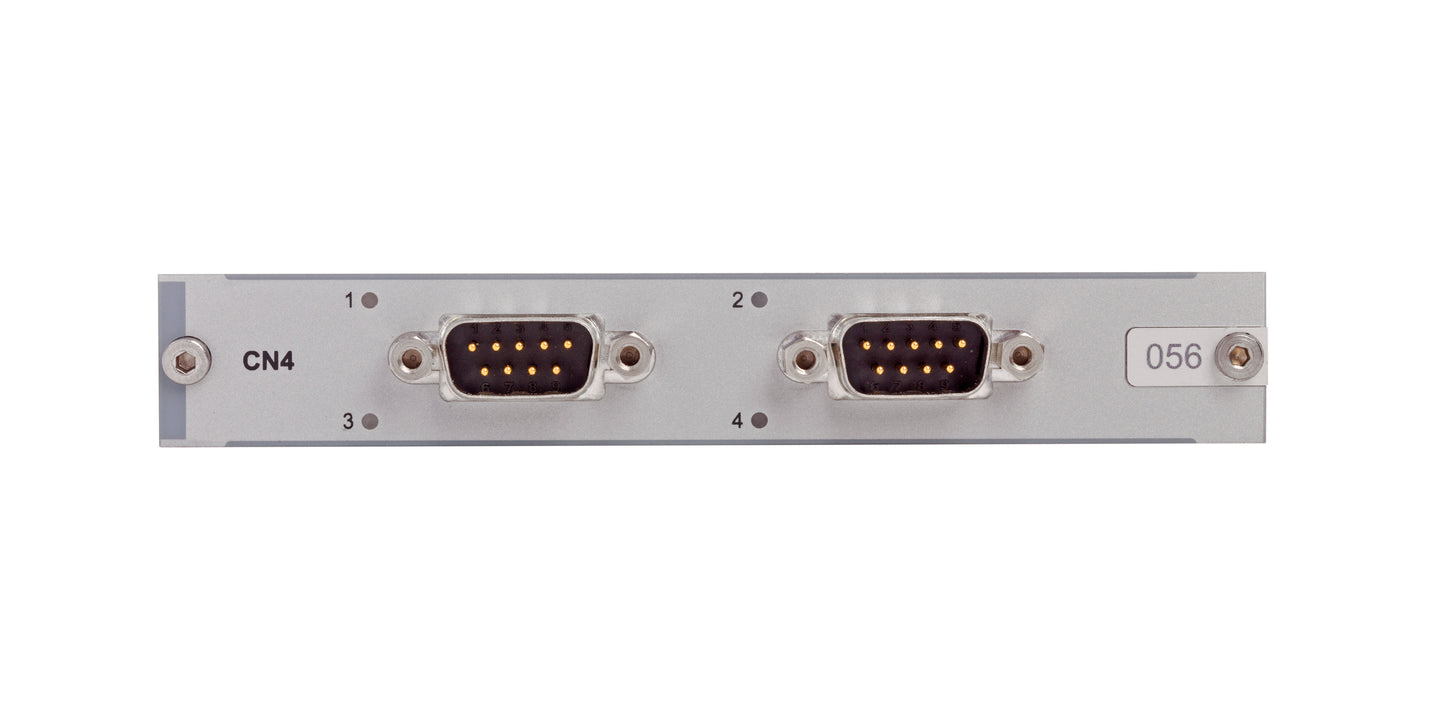

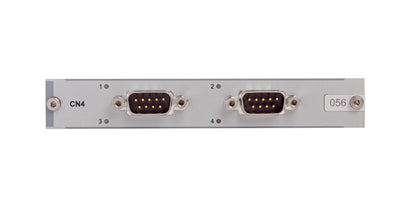

SCM-CN4-II

The Simcenter SCADAS Mobile and Lab CN4-II is a CAN bus input module. It enables the synchronous acquisition of CAN 2.0 or CAN FD channels in parallel with the dynamic signals measured by the Simcenter SCADAS input channels.

  • Connection of up to four independent CAN-FD buses with analog data
  • Software-controlled resampling for fully synchronous acquisition of CAN-FD signals.

Frame Color
€5,699.00
€5,699.00
Sale Sold out
You need a verified account to view prices and purchase products.
  • Available
Show full details

The CN4-II input module for SCADAS Mobile and SCADAS Lab supports four CAN-FD bus interfaces that are compatible with the ISO 11898-1:2015 (CAN-FD) standard.
The CN4-II complies with the CAN 2.0A/B and CAN-FD message protocols, which are recognized and used by most vehicle manufacturers, and also supports the SAE J1939 standard for trucks and buses.
The raw CAN data stream can be recorded and saved to the hard drive and later decoded in Testlab. During recording, only selected channels are resampled.”

  • Two 9-pin Sub-D to CAN adapter cables
