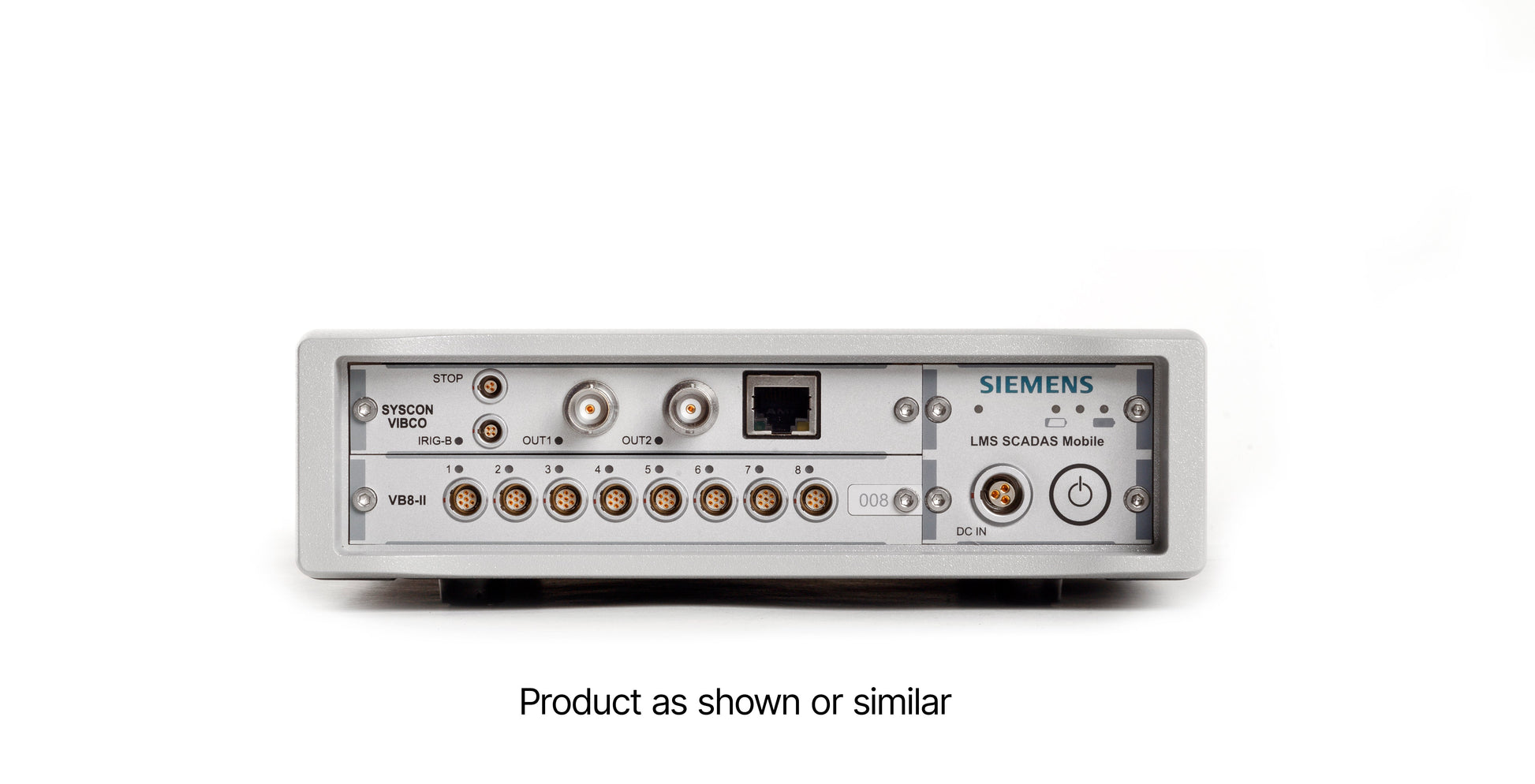

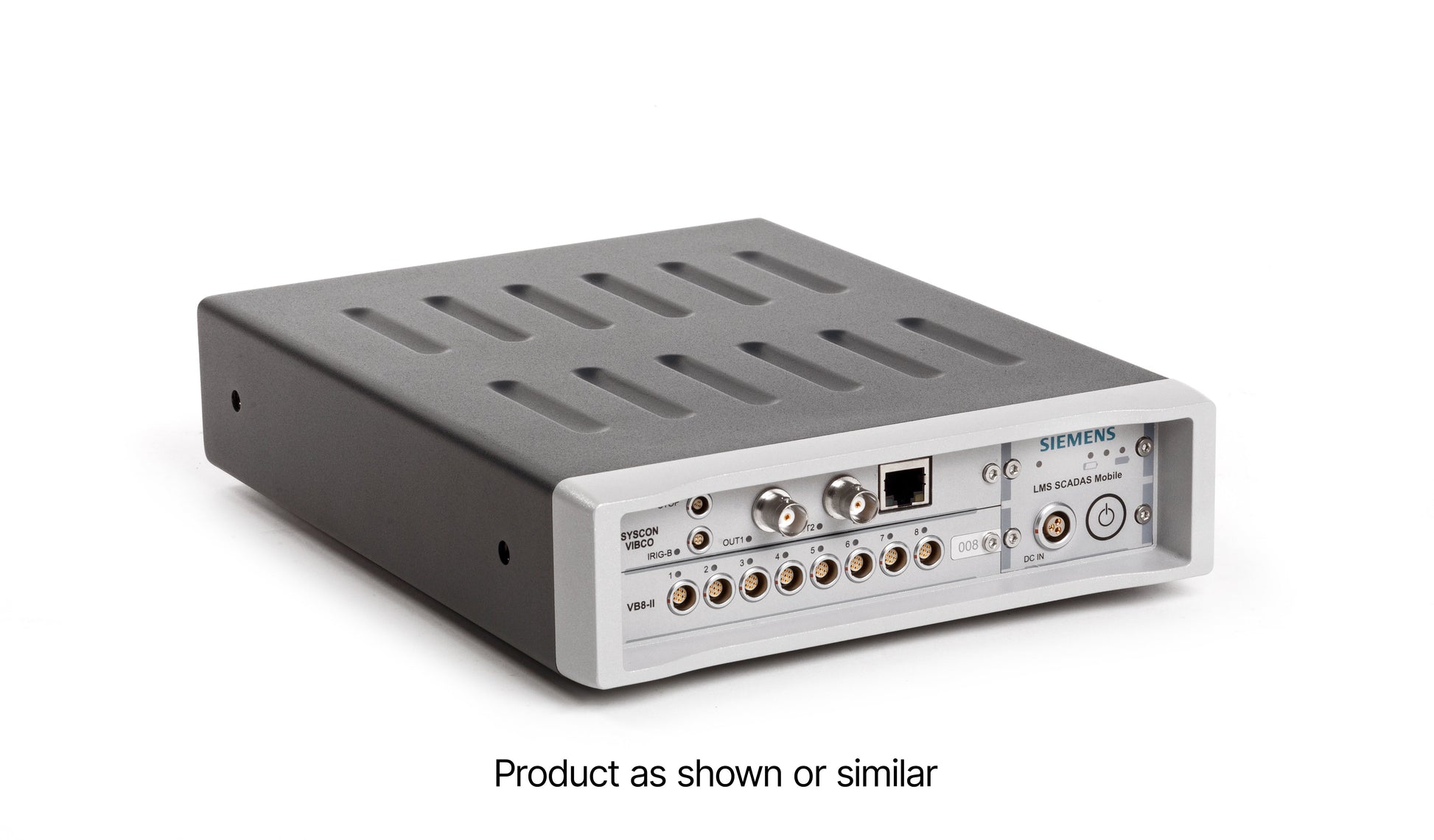

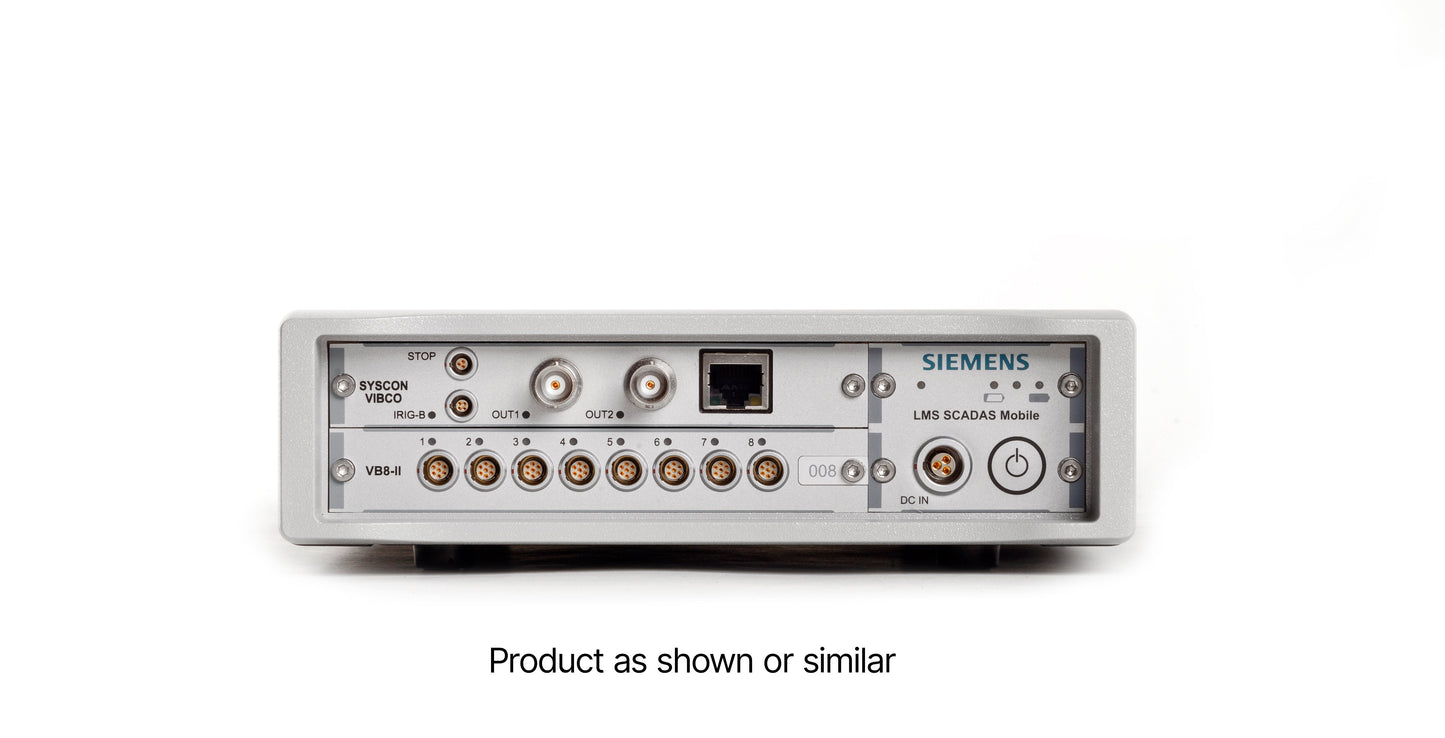

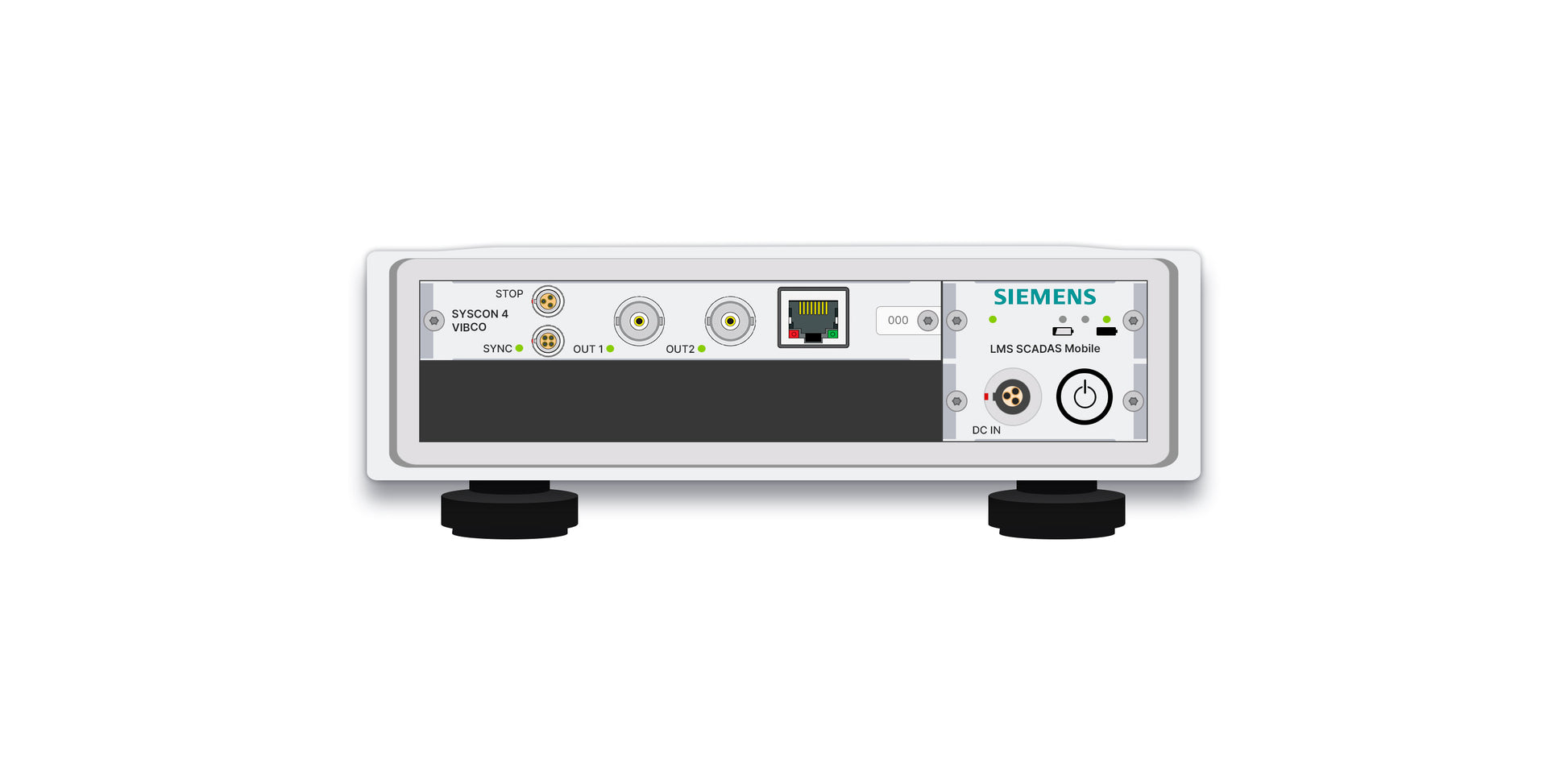

Simcenter SCADAS Mobile Vibration Control Mainframe - 1 free slot

SKU:SCM2E01V

The Simcenter SCADAS Mobile for environmental testing features two inputs: a digital/analog SYNC/IRIG-B input that can be switched to tachometer mode, as well as a controlled emergency shutdown. In addition, it is equipped with an AC-DC adapter and an internal battery. It features a standard Ethernet (UTP) interface, has a battery life of at least 150 minutes, and is certified to the MIL-STD-810F standard.

Ultra-compact size
Lightweight and robust housing for harsh environments
Modular system with precise signal processing and channel-independent sampling frequency
Support for 8 to 216 input channels as a single frame configuration or 1024 input channels as a primary-secondary configuration

Frame Color Mainframe - 1 free slot Mainframe - 2 free slots Mainframe - 5 free slots Mainframe - 9 free slots

€13,090.00

Sale Sold out

You need a verified account to view prices and purchase products.

Available

Show full details

The SCADAS Mobile is a specialized modular front-end system for vibration control applications. It features two 24-bit signal generator outputs, connectivity for a hardware emergency stop switch, and a slot for up to 216 input channels. The Simcenter SCADAS Mobile vibration control frame uses high-speed serial Ethernet with a maximum throughput rate of 14 M samples/sec to transfer data for all channels to the host.

USB 3.0 to Gigabit LAN Ethernet Adapter
LEMO connector size 00
LEMO to 1x BNC adapter cable
2 m CAT6 FTP cable
Mobile grounding device 1.5 m
AC-DC adapter 160 W + 24 V/6.67 A
direct current cable

Measure everywhere
Thanks to its robustness, exceptional environmental specifications, flexible power requirements, and wide operating temperature range, the SCADAS Mobile can be used in virtually any mobile test campaign.
Ultra-quiet
Since the SCADAS Mobile does not have a fan, it is the ideal system for critical acoustic measurements. The combination of three advanced technologies makes fans unnecessary.
battery operation
The SCADAS-Mobile has an integrated battery for mains-independent operation for a maximum of two and a half hours. The battery is automatically charged when an external power supply is connected.
Primary-secondary interface
SCADAS Mobile supports measurements with up to 1,024 channels in a maximum of 31 frames.

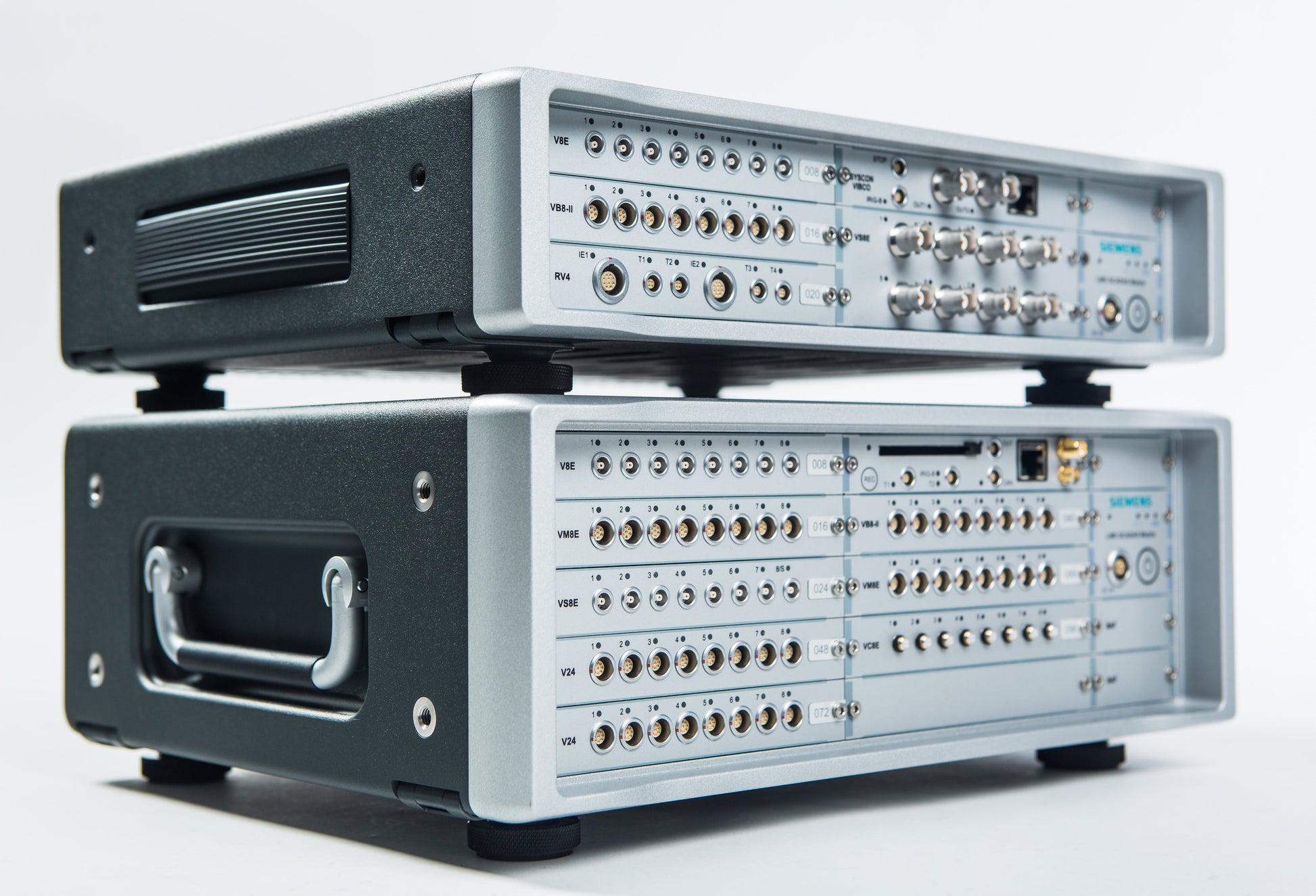

Multi-frame configurations
SCADAS Lab, Mobile, and Recorder frames can be combined in a single measurement configuration. All frames can be connected to a single 10 Gbit switch, which streams the combined data to a PC running Testlab™.
Maximum throughput is guaranteed for up to 186 channels at a sampling rate of 204.8 kHz.
power supply
Wide DC voltage range from 10.8 VDC to 42 VDC (at DC-IN port) with reverse polarity protection
AC operation via external power supply
speedometer input
Two analog and digital tacho modes
Input pulse rates of up to 40 kHz in analog mode and up to 204.8 kHz in digital mode (up to 1 MHz with "Pulses to Skip")
Tacho accuracy of 1.2 ns
Input range from 200 mV to 40 V
Support for ICP-type tacho sensors
5 V power supply for voltage sensor and 5 mA power supply at 28 V.
5 V sensor power supply with up to 200 mA per two tacho inputs
ICP sensor power supply with 5 mA from 28 V
signal generator
Two short-circuit-protected single-ended outputs via a grounded LEMO socket
24-bit bitstream DAC
Dynamic range of 110 dB relative to the maximum output signal at 20 kHz bandwidth
