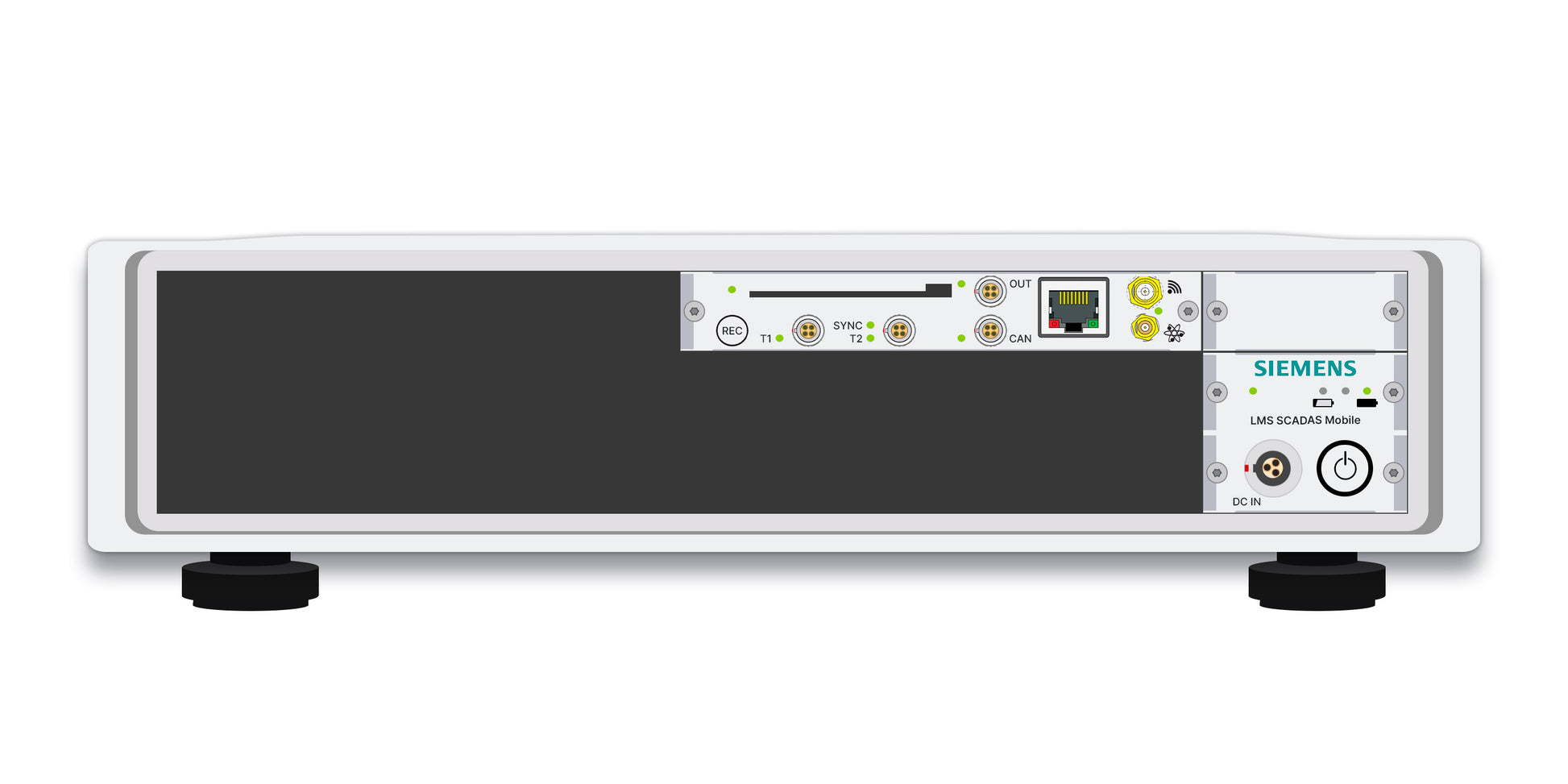

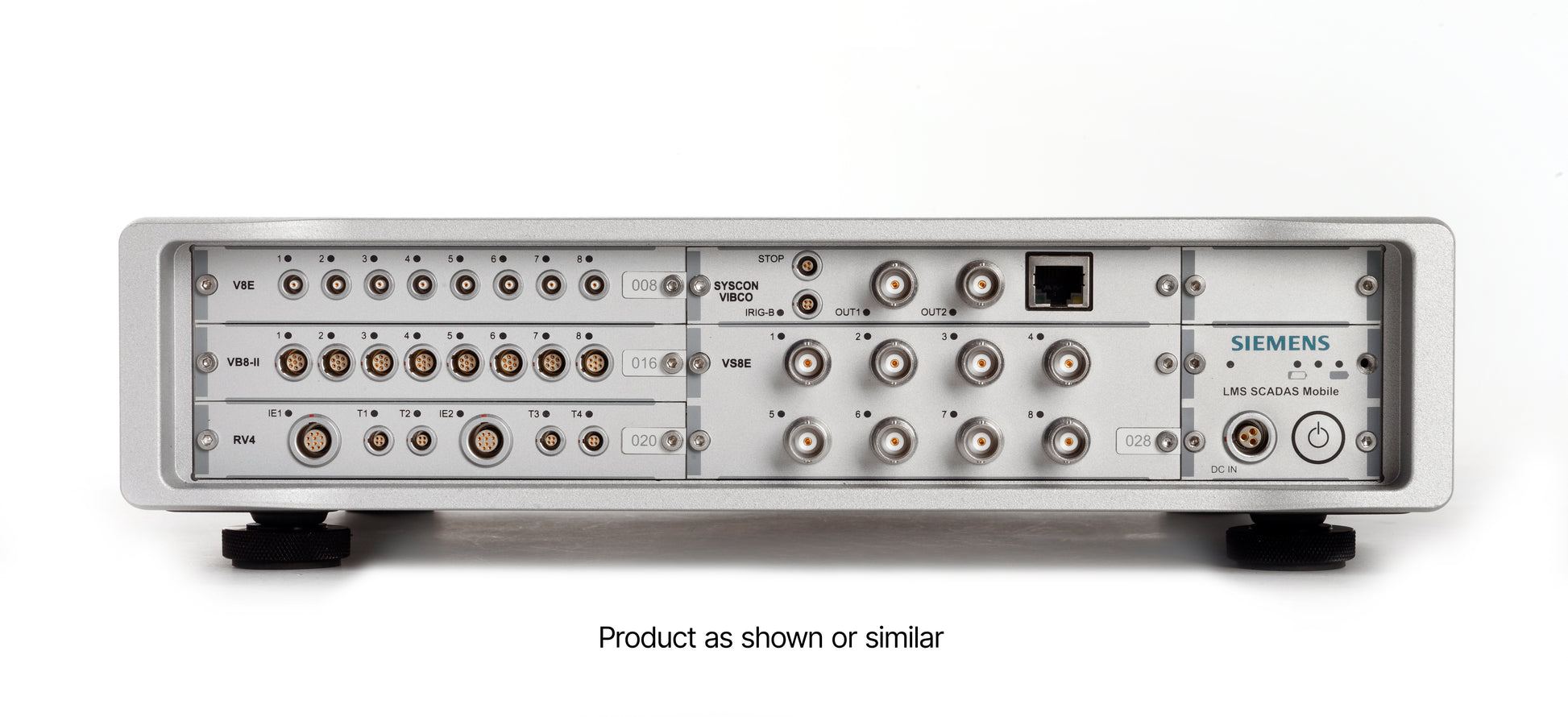

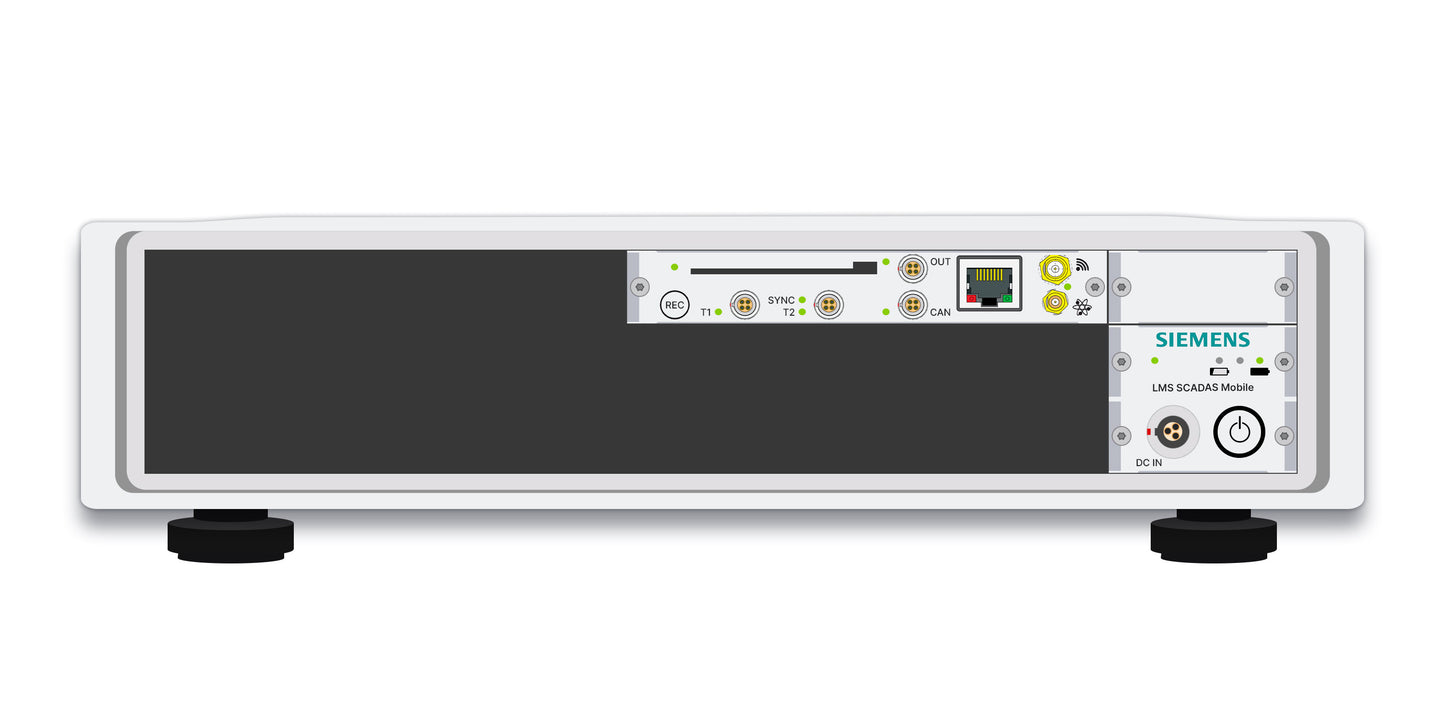

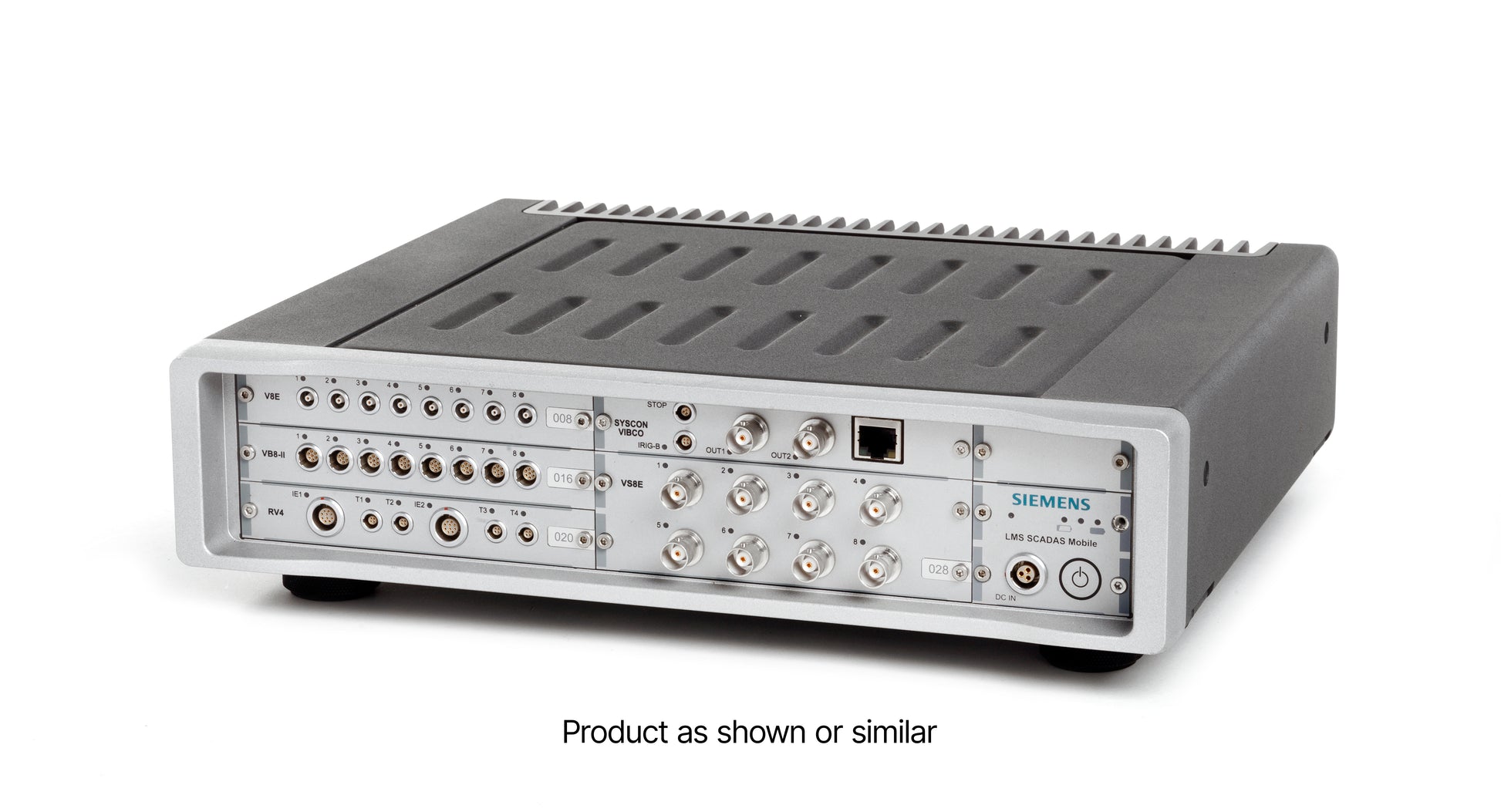

The Simcenter SCADAS Recorder features two data sources, two tachometers, Wi-Fi, GPS, a CAN bus, a built-in CompactFlash card reader, an AC-DC adapter, and an internal battery. It can be used in fully autonomous mode without a connection to a PC or in PC-based operation via a standard Ethernet interface. It has a battery life of at least 150 minutes and is certified to the MIL-STD-810F standard. Remote on/off functionality is available via the front end.
Ultra-compact size, lightweight design, and rugged housing for harsh environments
Fully autonomous time data logging
Support for 8 to 216 input channels in a single-frame configuration or 1,024 input channels in a multi-front-end configuration
Regular price
€23,430.00
Selling price
€23,430.00
Regular price
Base price/ per
Sale
Sold out
You need a verified account to view prices and purchase products.
Availability for in-store pickup could not be loaded
As a modular system, Simcenter SCADAS recorders can be equipped with any Simcenter signal conditioning module of your choice. All of these modules deliver data with 24-bit precision and have a dynamic range of up to 150 dB. The built-in capability to capture GNSS and CAN bus signals enables the synchronous tracking of multiple parameters alongside the recorded time data.
GPS and GLONASS-compatible antenna
Wi-Fi antenna
USB 3.0 to Gigabit LAN Ethernet Adapter
LEMO to 2x BNC Adapter Cable - 50 cm
LEMO to 1x BNC Adapter Cable - 50 cm
LEMO to 1x SUB-D Adapter Cable - 50 cm
CAT6 2m FTP Cable
1.5-meter Mobile Grounding Device
AC-DC Adapter 160W, 24V/6.67A
direct current cable
Primary and secondary interfaces
The Simcenter SCADAS Recorder supports measurements with up to 1,024 channels across a maximum of 31 frames. A maximum throughput of 186 channels at 204.8 kHz is guaranteed.
speedometer input
Dual analog and digital tachometer mode
Input pulse rates up to 40 kHz in analog mode and up to 204.8 kHz in digital mode (up to 1 MHz with "Pulses to Skip")
Tachometer accuracy of 1.2 ns
Input range from 200 mV to 40 V
Support for ICP-type tachometer sensors
5 V power supply for the sensor and 5 mA current supply at 28 V
5 V sensor supply with up to 200 mA per two tachometer inputs
ICP sensor supply with 5 mA from 28 V
signal generator
Two short-circuit-protected single-ended outputs via a grounded LEMO connector
24-bit bitstream DAC
Dynamic range of 110 dB, relative to the maximum output signal at a bandwidth of 20 kHz
Interpolation filters are a combination of analog reconstruction filters and digital interpolation filters with noise shaping.
Signal generation up to 40 kHz, maximum output voltage ±10 V (can be reduced to ±300 mV in the software).
Data storage modes
To host PC via Ethernet interface
To internal CompactFlash® card
Simultaneously to host and CompactFlash® card
Available
