Simcenter SCADAS RS Recorder Unit

Name: Simcenter SCADAS RS Recorder-Einheit
Brand: Novicos
SKU: SCRS-REC
Price: 16420.00 EUR
Availability: InStock

SKU:SCRS-REC

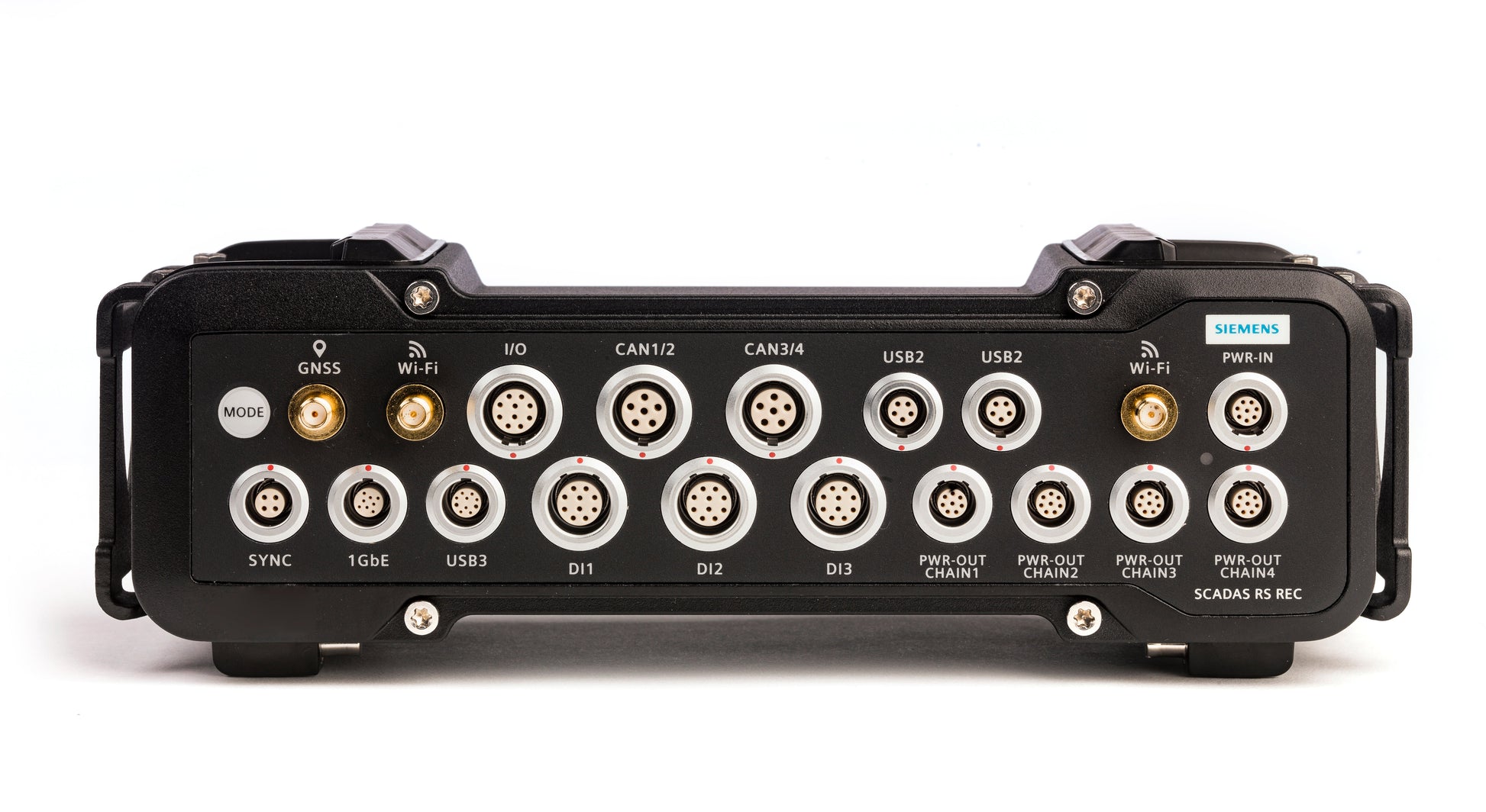

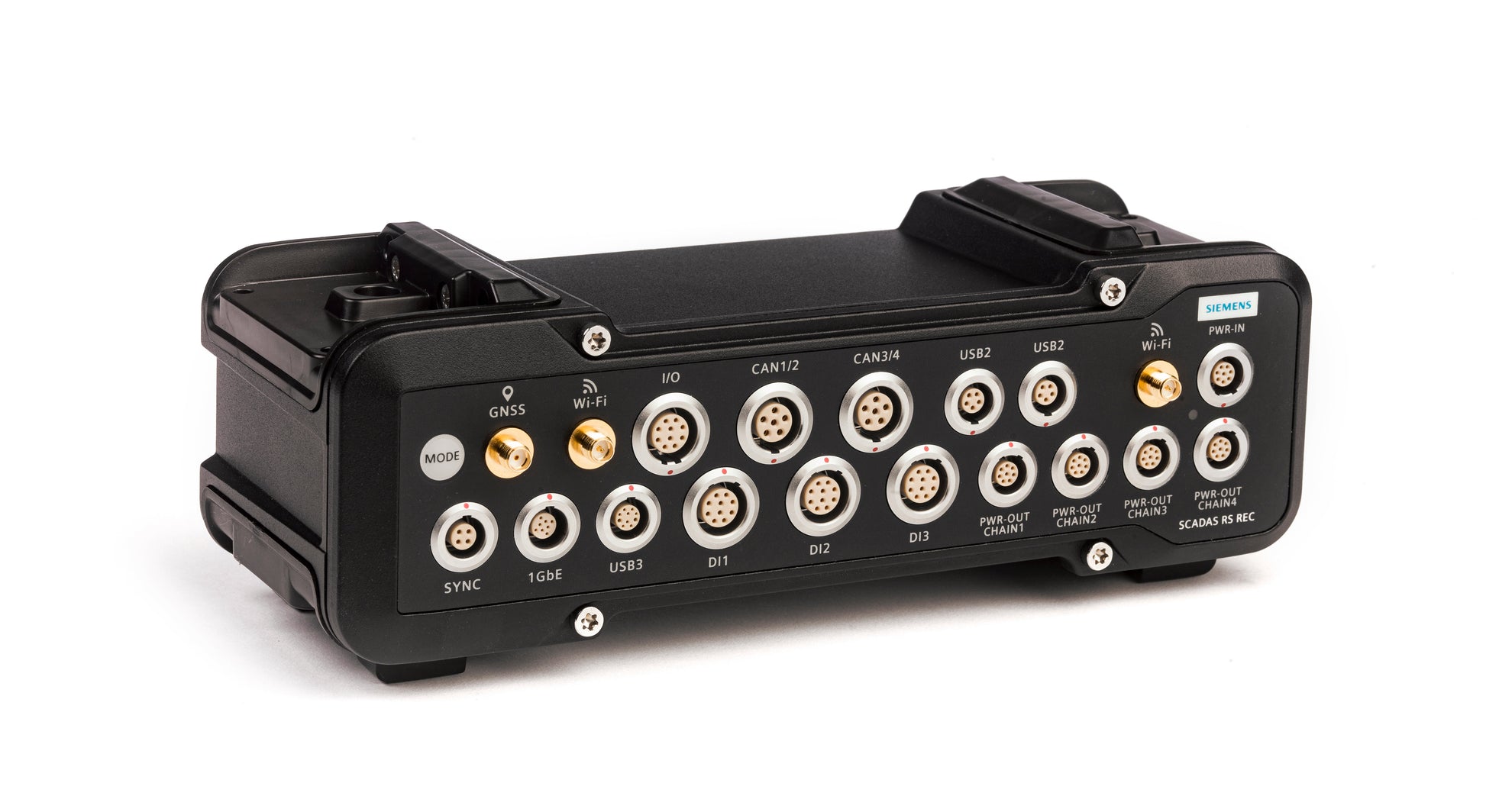

The SCRS-REC collects data from four daisy chains of conditioning units, connects to networks (wired or wireless), and synchronizes with other REC units.
In addition, it supports up to four CAN buses, two USB 2.0 ports, three digital encoders, up to four digital I/Os, and a GNSS antenna port.

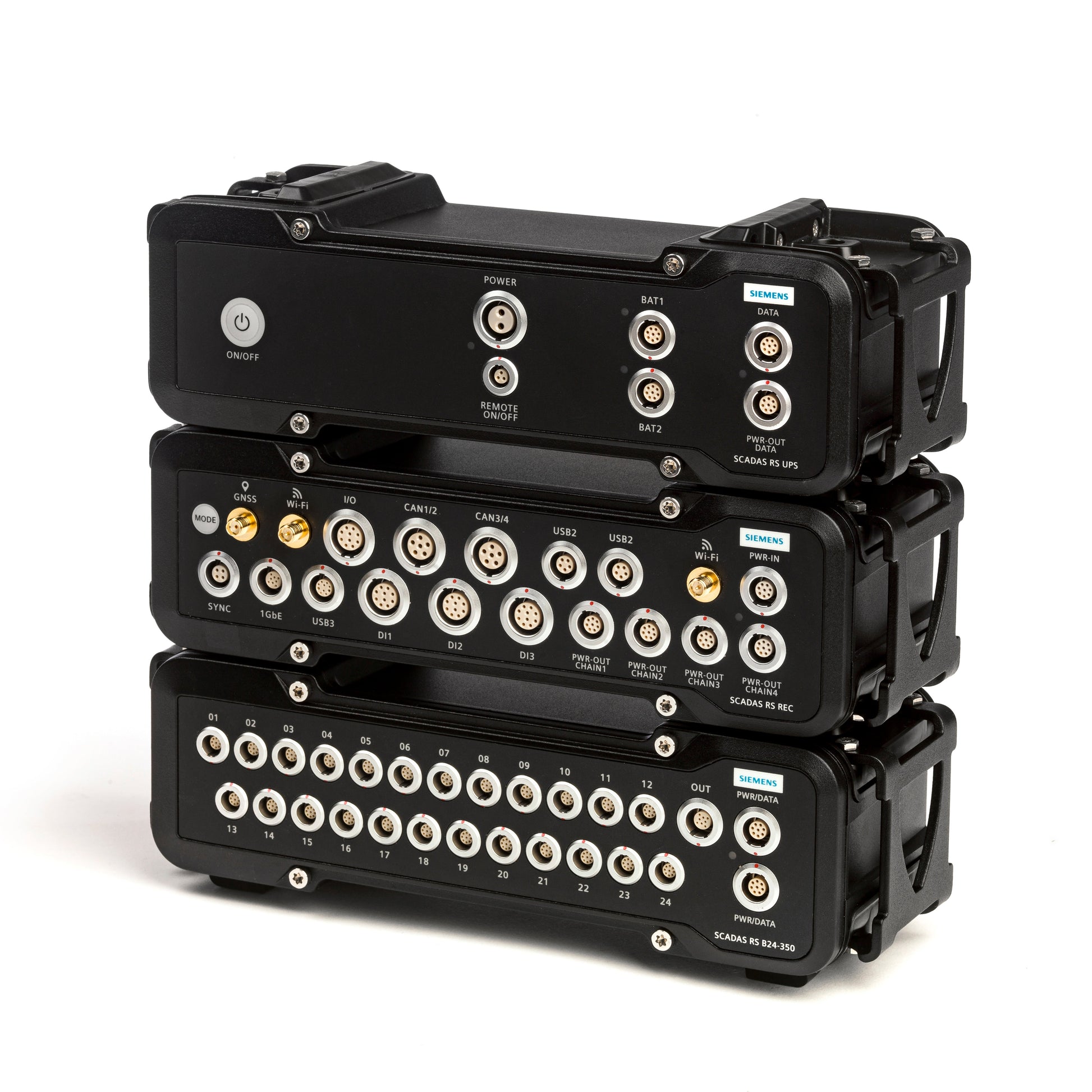

The units are powered by an uninterruptible power supply (UPS) with flexible power distribution to multiple units.

€16,420.00

Sale Sold out

You need a verified account to view prices and purchase products.

Available

Show full details

Four daisy-chain connections for units

Up to 6.8 MSamples/s throughput

Four CAN buses and three ports for digital pulses (up to nine channels) or encoders

240 GB SSD drive

Ethernet (1 GbE), USB 3.0 and Wi-Fi

USB 3.0 port

Up to three USBcameras

GNSS input

Synchronization of multiple REC units

Wide temperature range from -40 °C (-40 °F) to +65 °C (149 °F) (under certain conditions)

Integrated Simcenter SCADAS RS Recorder App

Simcenter SCADAS RS Recorder App
Simcenter SCADAS RS Calibration App

General
Inputs: 2x 2-wire CAN bus, 3x digital pulse inputs, 1x DIO (4 individual I/O ports), 2x USB 2.0
Additional inputs and connectors: 1x power supply, 4x daisy chain, 1x GNSS antenna, 2x Wi-Fi antennas, 1x Ethernet (1 Gb), 1x USB 3.0, 1x SYNC
Connectivity
Ethernet: For connecting to a network or host PC (1 GbE).
USB 2.0: Camera support; to external HD drive for data transfer
USB 3.0: Camera support; to external HD drive for data transfer
Wi-Fi: Up to 3 simultaneous connections
LTE: Via external modem
Integrated storage: 240 GB SSD
Daisy-chain connections
Daisy-chain units: Up to 4 daisy-chains of conditioning units at 1.7 MSamples/s per daisy chain Aggregated units
Maximum supported units: 64 (including secondary USVs)
CAN connection
CAN connection type: Each CAN connection is split into SUB-D connectors using appropriate cables
CAN support: CAN data can be interpreted, interpolated, and stored on the REC unit: in raw format, in LDSF format
CAN bus speed: CAN-FD up to 8 Mb/s; CAN High Speed (ISO 11898-2): up to 1 Mb/s; CAN Low Speed (ISO 11898-3): up to 125 kb/s
Connection for digital pulse inputs
Digital pulse inputs: 3 ports for 9 digital pulse signals (or 3 digital encoders)
Pulse support details: TTL signals; HTL signals; RS-422 encoder signals; RS-485
GNSS connection
GNSS Input: 1 port for an external GNSS antenna
GNSS Support Details: GPS; GLONASS; BeiDou
Environmental certification
Operating temperature range: -40 °C to +50 °C (-40 °F to 122 °F)
Storage temperature range: -40 °C to +85 °C (-40 °F to 185 °F)
Ambient pressure: 0.5 bar to 1.3 bar
Water and dust protection: IP66/IP67
Humidity: Fully protected against humidity
Vibration: MIL-STD-810G; Method 514.6; Procedure I; Category 24; 20–2000 Hz; Random vibration 10 g (rms); 1 h per axis
Shock resistance: MIL-STD-810G; Method 516.6; Procedure I; Trapezoidal shock; 100 g (peak); 11 ms; three shocks per direction
Drop: MIL-STD-810G Method 516.6; Procedure IV – Transport drop (26 drops from a height of 122 cm onto every surface; edges and corners)
Calibration: Complies with ISO 17025.
Certifications: CE; FCC; MIC
