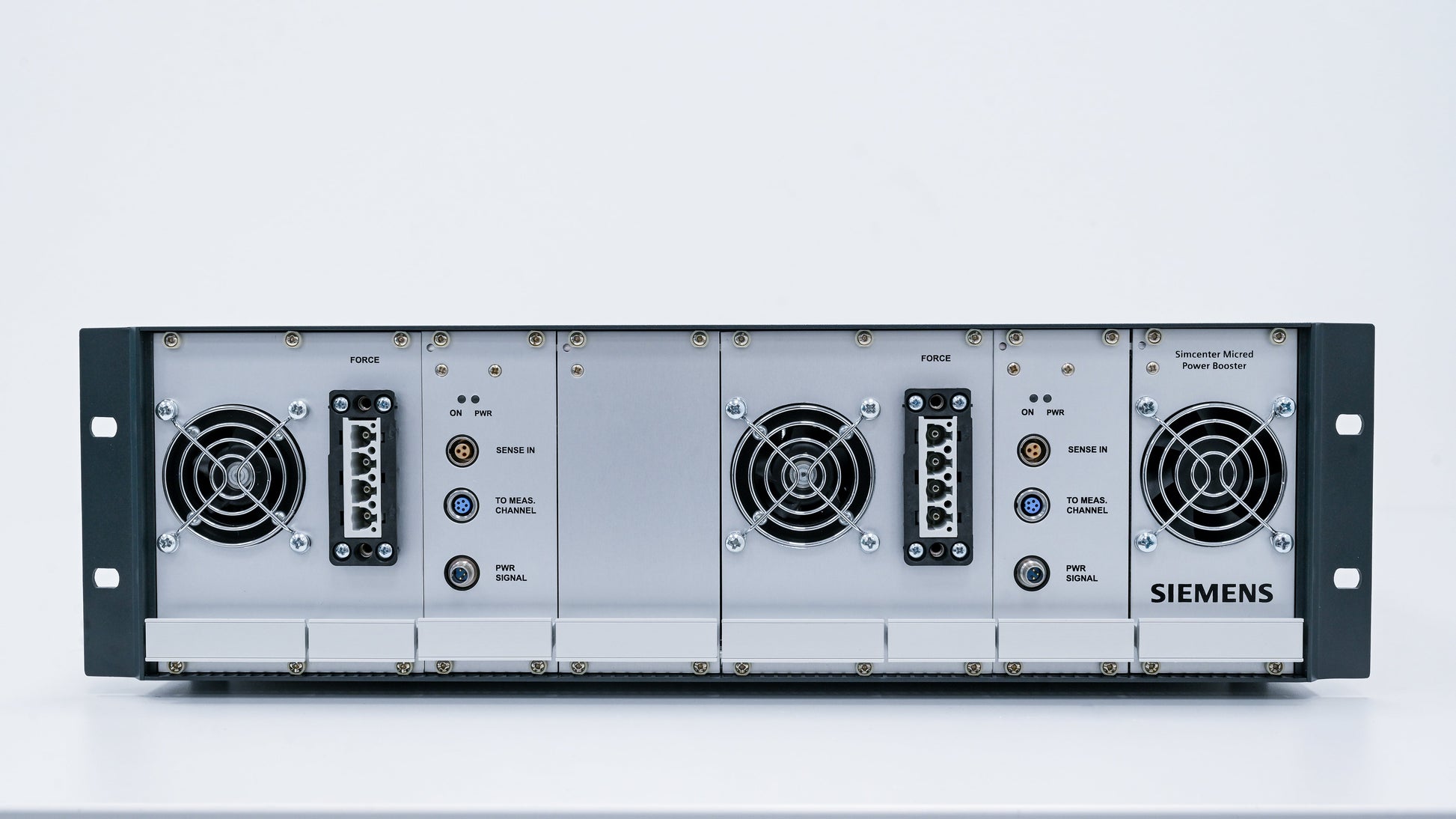

This Power Booster is an add-on for the T3STER SI hardware that can increase the heating current and boost the output power.
Designed for higher output power; an external power supply or power source (not included with the booster) must be connected to the system.
Requirements - MG280485NO - MG280487NO - MG286673MC
Add-on for the T3STER SI hardware
Increase in output power
Operating at higher heating currents
Regular price
€25,350.00
Selling price
€25,350.00
Regular price
Base price/ per
Sale
Sold out
You need a verified account to view prices and purchase products.
Availability for in-store pickup could not be loaded
Max. heating current: 10–240 A
Number of heating current channels: 1
Resolution: 15 mA
Collector-emitter voltage: 0–11 V
Gate-emitter voltage: –10 to +20 V
Number of gate-emitter outputs: 4
General Specifications
Dimensions (L x W x H): 540 mm x 495 mm x 315 mm
Weight: 34.6 kg (including the 2 power supplies)
Available
