  • Simcenter T3STER SI Frame
  • Simcenter T3STER SI Frame

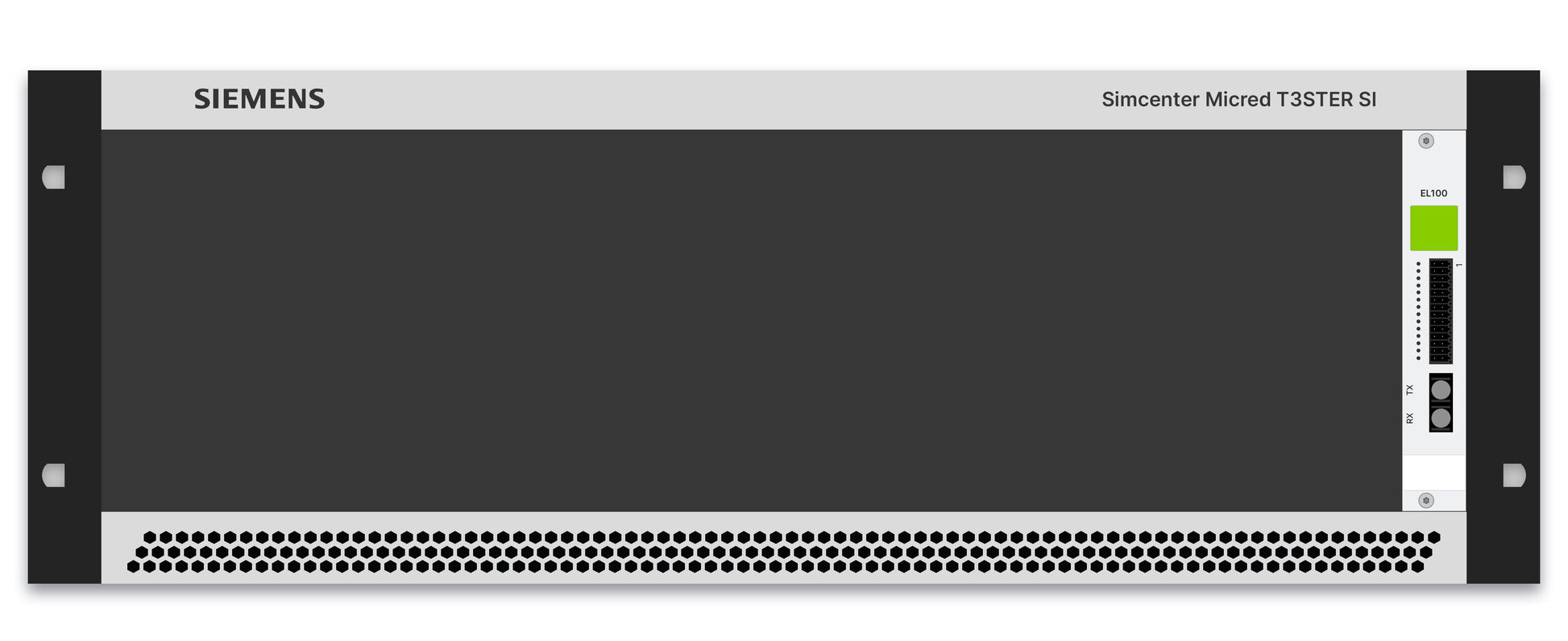

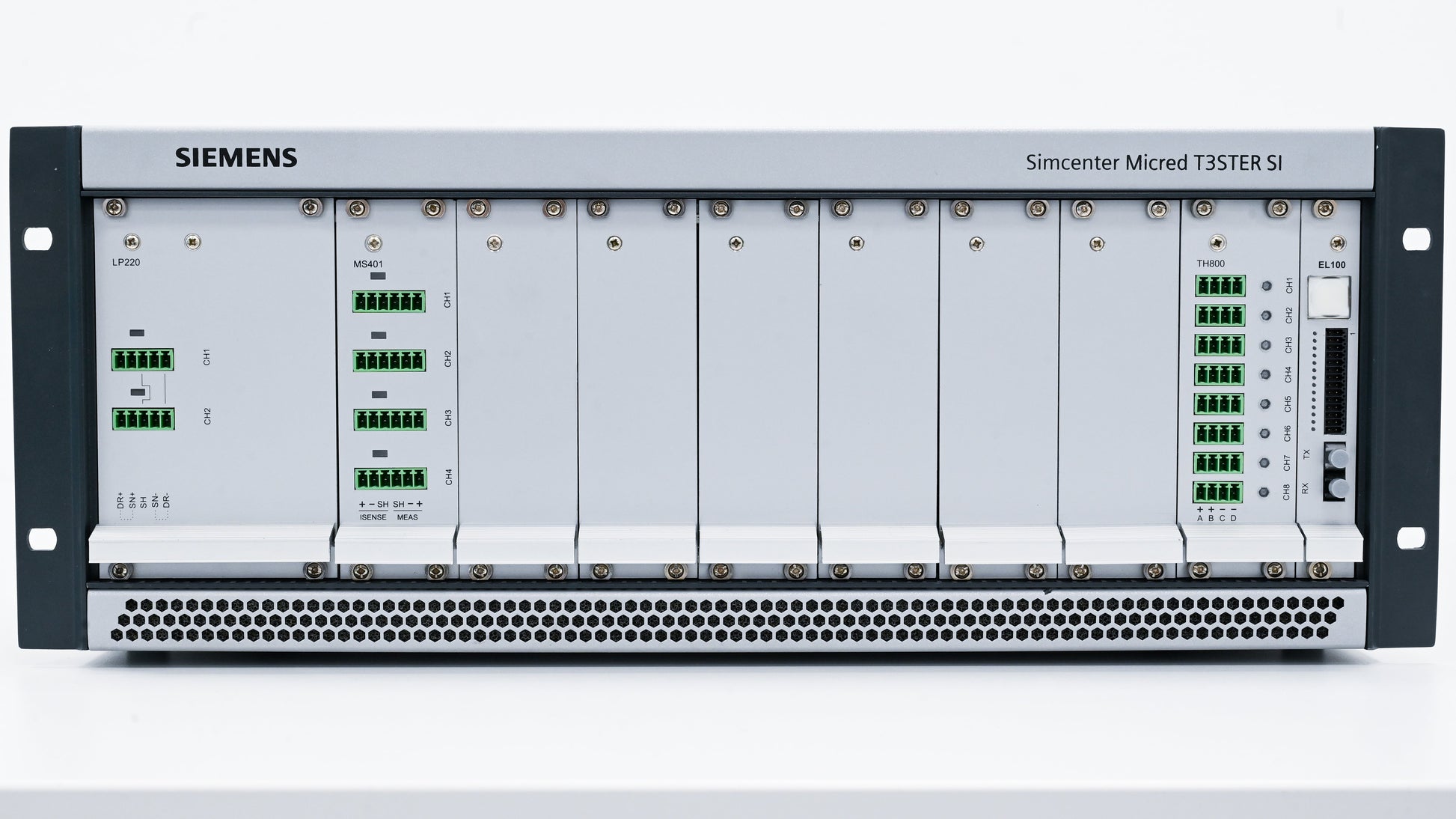

T3STER SI Main Chassis

Simcenter T3STER SI Frame

Simcenter T3STER SI Frame

MG280485NO

Requirements - MG286673MC

  • Fits a 19-inch rack
  • Up to 10 slots for plug-in units
  • 28-pin front panel I/O slot

€13,970.00
€13,970.00
Sale Sold out
You need a verified account to view prices and purchase products.
  • Available
Show full details
  • Slots on the back
  • Gigabit Ethernet
    USB Host; USB Peripheral
    RS232; RS422/485
  • Front Panel Slot (EL100)
  • 28-pin I/O interface
    Fiber optic RX/TX
  • Physical Properties
  • Dimensions (H x W x D): 177.8 mm x 448.9 mm x 375.5 mm
    Empty weight of main chassis: 7 kg
    19" rack-mountable
    Air-cooled
  • System performance
  • Eingangsspannungs: 90-264 VAC
    Eingangsfrequenz: 47-63 Hz
    Eingangsstrom @90VAC: <5.5A
    Einschaltstrom @264VAC: 15Apk
    Maximaler Leistungsverbrauch: 430W
    Sicherung: 6.3AT
  • Plug-in slots
  • 10 modules
