Low-Power Heat Source Module

Simcenter T3STER SI LP220

Simcenter T3STER SI LP220

SKU:MG280486NO

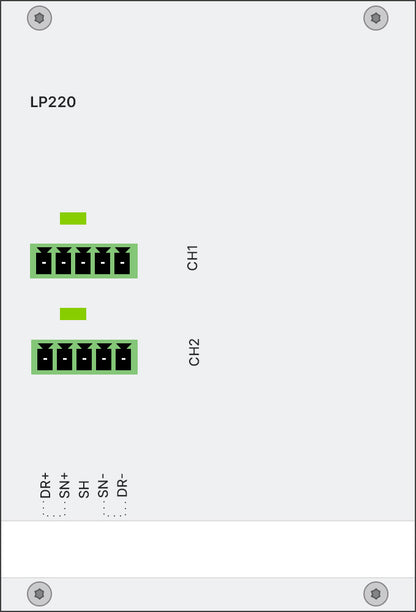

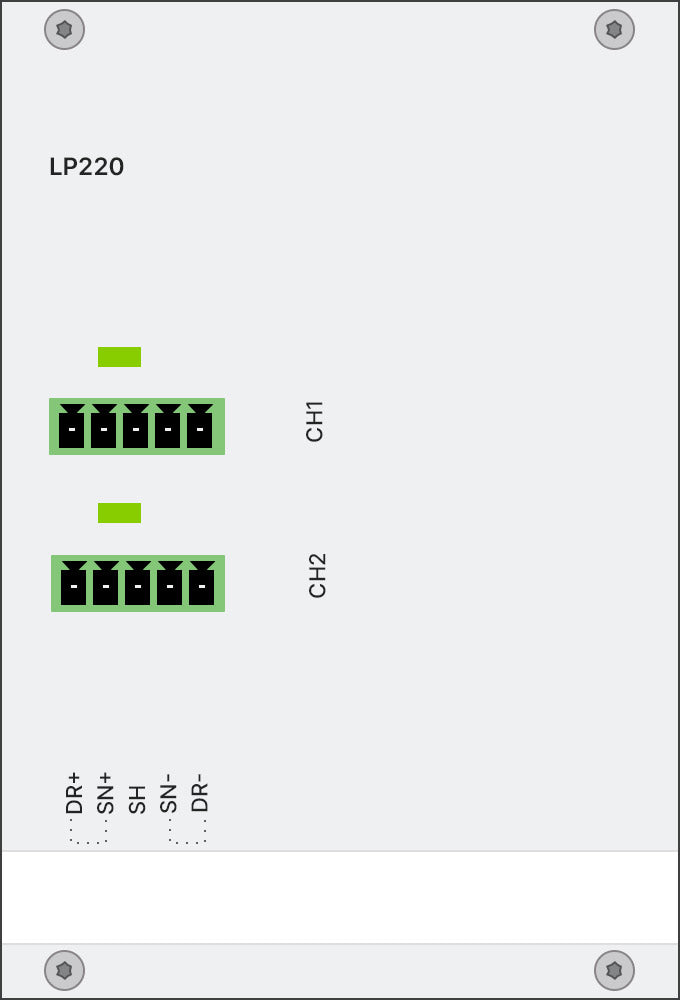

The T3STER SI LP220 is a module with an output heating power of up to 20 W.

Prerequisites - MG280485NO

  • Total output power: 20 W
  • Number of outputs: 2
  • Simultaneous voltage and current measurements on both channels

Frame Color
Regular price €10,600.00
Selling price €10,600.00 Regular price
Sale Sold out
You need a verified account to view prices and purchase products.
  • Available
Show full details
  • Modules
  • 2 independent outputs deliver up to 20 W of power
    Max. power consumption of 40 W
    Occupies 2 module slots
    Current or voltage mode for outputs (configurable in the software)
  • Output in power mode
  • Ranges (+- 20 mA; +- 100 mA; +- 100–200 mA; +- 1 A; +- 1–2 A)
    Resolution (0.64 µA; 6.4 µA; 64 µA)
    Output resistance of 1 MΩ
  • Output in voltage mode
  • Range of 40 V
    Resolution of 1.25 mV
    Available only with a T3SI3POLE license
