Transient Measurement Module

Simcenter T3STER SI MS401

Simcenter T3STER SI MS401

MG280487NO

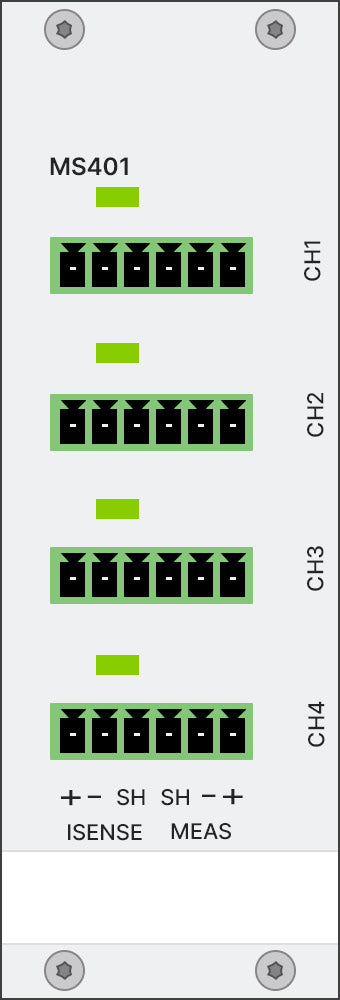

The T3STER SI MS401 is a module with 4 galvanically isolated measurement channels for transient temperature and voltage measurement.

Prerequisites - MG280485NO

  • 4 channels for transient measurements
  • 4 measurement current sources
  • electrically isolated

Frame Color
€13,620.00
€13,620.00
Sale Sold out
You need a verified account to view prices and purchase products.
  • Available
Show full details
  • Modules
  • 4 channels for thermal transient measurements
    4 outputs for measurement currents
    Occupies 1 module slot
    Max. power consumption: 25 W
  • Measurement current outputs
  • Galvanically isolated
    Range: ±100–200 mA
    Resolution: 6.2 μA
    Output resistance: 1 MΩ
  • Channels for transient measurements
  • Galvanically isolated
    Input resistance: 100 kΩ
