  • Simcenter T3STER SI TH800
  • Simcenter T3STER SI TH800

Passive Temperature Sensor Measurement Module

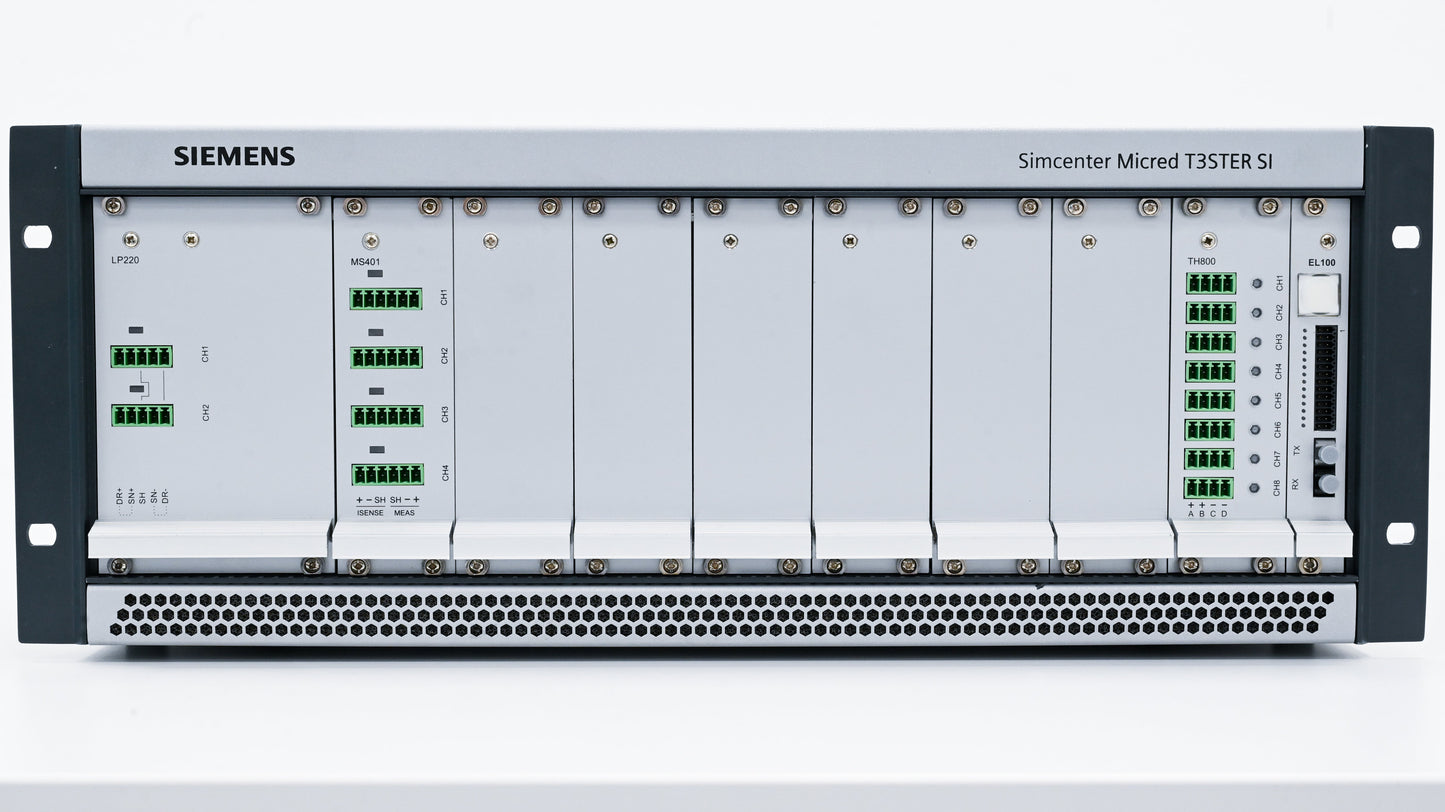

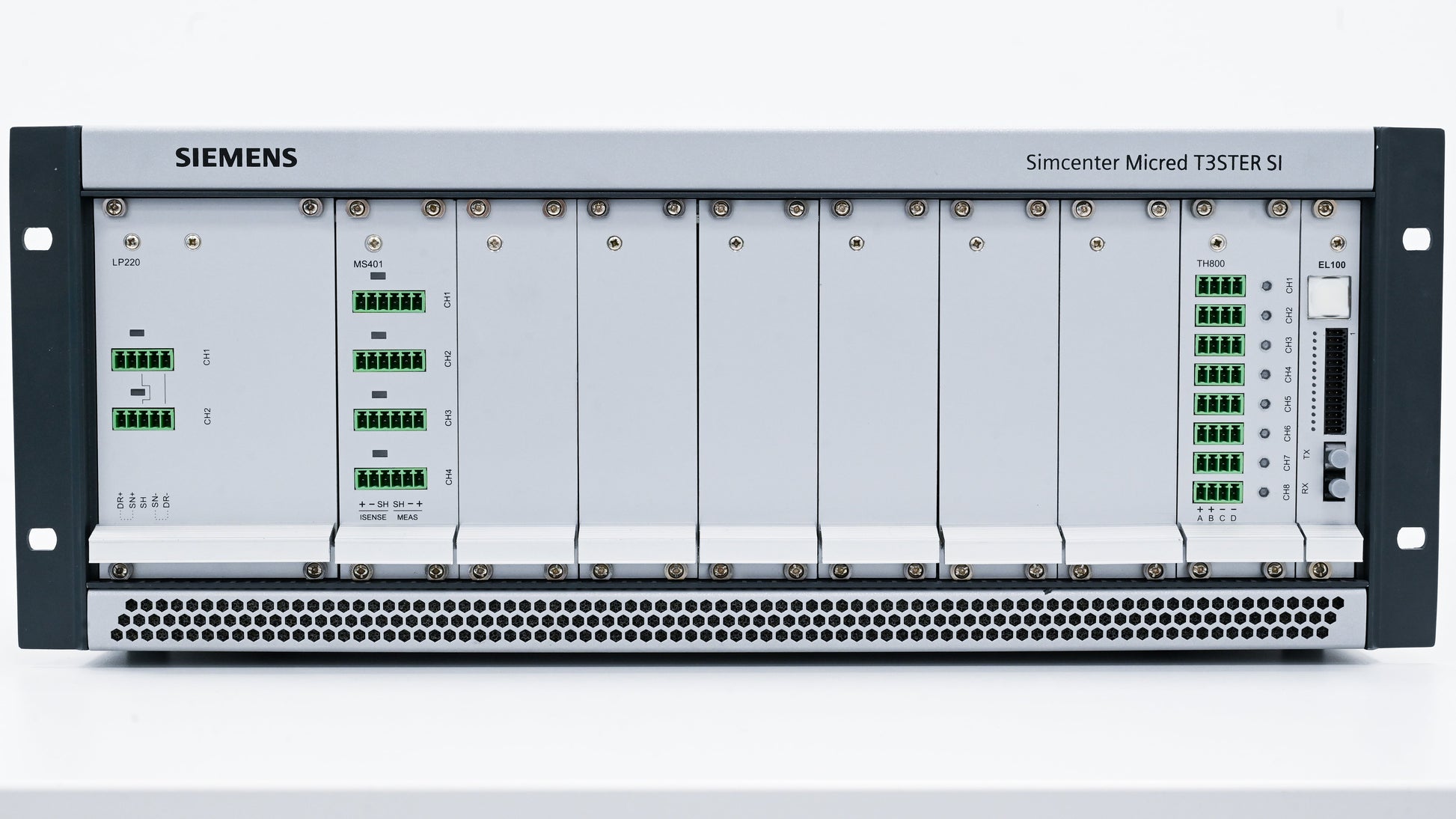

Simcenter T3STER SI TH800

Simcenter T3STER SI TH800

MG286873NO

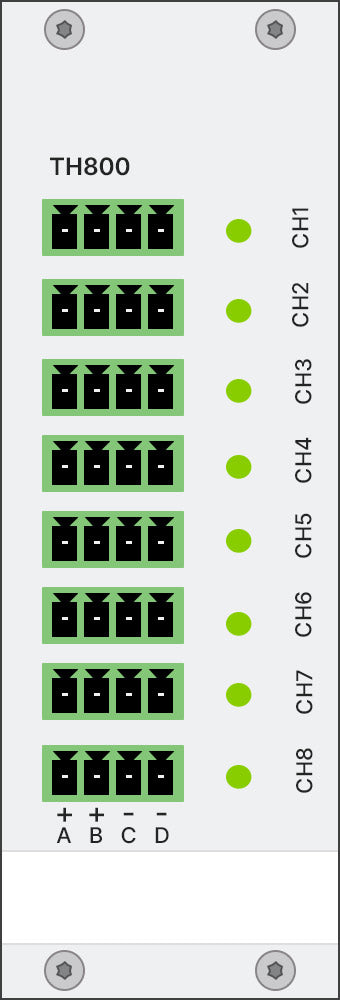

The T3STER SI TH800 is a module that can accommodate up to 8 resistance thermometers and thermocouples (J, K, T).

Prerequisites - MG280485NO

Frame Color
€1,974.00
€1,974.00
Sale Sold out
You need a verified account to view prices and purchase products.
  • Available
Show full details
  • Modules
  • 8 input measurement channels
    Supported sensor types: resistance temperature detectors and thermocouples
    Min. temperature: -100°C
    Max. temperature: +400°C
  • Thermocouples
  • Supported types: J/K/T
    Resolution: 0.6 μV (~0.016°C)
  • Resistance thermometer
  • 2-, 3-, and 4-wire resistance temperature detectors (RTDs)
    RTD10; RTD20; RTD50000; etc.
    Accuracy: ±1°C
